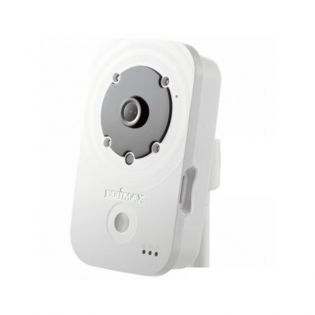

IC-3140W


HD Wireless Day & Night Network Camera

  • Plug-n-View for 24/7 Remote Monitoring with free EdiLife app on iPhone®, iPad® or Android®  and 16CH viewer software for computers

  • 720p HD Video Quality with high resolution and rich detail

  • Night Vision with infrared LEDs, mechanical ICR and auto light sensor

  • PIR & Motion Detection triggers recording and sends to email and ftp

  • Sound Detection triggers recording and sends to email and ftp

  • Push Notifications & Video Alert with event videos

  • Two-Way Audio*: Built-in a speaker and microphone for two-way audio* support, remotely communicate at the camera’s location or activate a deterrent alarm

  • MicroSD/SDHC Card Slot for local storage

  • Wireless & Ethernet connection for flexible placement

  • Easy Setup & WPS Support

  • Compatible with IEEE 802.11b/g/n products

  Get EdiLife app from:
App Store Google Play


The Edimax IC-3140W 720p wireless network camera is a versatile monitoring device ideal for monitoring your home, shop or factory during the daytime or at night. With Edimax Plug-n-View technology, no complicated setup is required and you can easily connect the camera to the cloud and monitor remotely from a smartphone, tablet or laptop.

The IC-3140W features two-way audio*, a motion & sound detection system, built-in microphone & speaker and a MicroSD/SDHC card slot. Motion detection can be configured according to user-defined areas and additionally utilizes a passive infrared sensor (PIR). Motion and audio-triggered recording ensure that you capture any illicit or suspicious activity and the wireless user interface allows for easy installation and monitoring.


Plug-n-View for 24/7 Easy Remote Monitoring
Edimax Plug-n-View technology makes it easy for you to keep an eye on your yard, garage, shop, factory or other assets wherever you go. With Plug-n-View technology, you can connect your network camera to the cloud in a few simple steps and access it remotely with a smartphone, tablet, or computer no matter where you are.



Edimax IC-3140W HD Wireless Day & Night Network Camera, Plug-n-View_EdiView_II_remote_monitoring.jpg










Night Vision
With a light sensor, image sensor and four infrared LEDs, the IC-3140W is well equipped to meet indoor security and surveillance needs - even in low-light and night-time conditions. And with automatic ICR (IR Cut Filter Removal), infrared light is filtered out during the day time (while allowed to pass at night) ensuring exceptional video color quality at all times.



Edimax IC-3140W HD Wireless Day & Night Network Camera, IC-3140W_Night_Vision.jpg










PIR & Motion Detection Triggered Recording
The powerful built-in motion detection system, with pre-defined detection regions and passive infrared (PIR) temperature sensor, offers peace of mind that you will capture any illicit activity. The PIR sensor detects motion via infrared radiation caused by temperature changes and when motion is detected, the network camera will produce video footage of the event immediately – storing the data on a MicroSD/SDHC card or sending it automatically via email or ftp.


Edimax IC-3140W HD Wireless Day & Night Network Camera, IC-3140W_PIR_motion-detection.jpg








Sound Detection Triggered Recording
The IC-3140W also features sound detection capabilities with a built-in microphone. When sound is detected, the network camera will take video footage of the event immediately in the same manner as with motion detection, and store the files locally on a MicroSD/SDHC card or send via email or ftp. Integrated sound offers a furthur level of security than motion-detection and visual imaging alone, providing critical real-time or post-event information about a situation, particularly in scenarios where events occur outside the camera’s field of vision. The sounds of breaking windows, doors or anything else suspicious can still be registered even in situations where the event can’t be seen.


Edimax IC-3140W HD Wireless Day & Night Network Camera, IC-3140_sound_detection.jpg











Push Notifications & Video Alerts
Push notifications are triggered by PIR, sound or motion detection, and when a detection system is triggered, the IC-3140W additionally sends video alerts to email or microSD card. If the camera ever goes offline, push notifications are also sent when the camera comes back online to keep users informed about any unusual activity.



Edimax IC-3140W HD Wireless Day & Night Network Camera, IC-3140_push_notification and video alert.jpg










Two-Way Audio*
The network camera incorporates a speaker and microphone for two-way audio* support, so you can remotely communicate at the camera’s location or activate a deterrent alarm -  a vital, cost-saving and potentially even life-saving additional security tool.

* Please note that the IC-3140W supports two-way audio half-duplex mode.




Edimax IC-3140W HD Wireless Day & Night Network Camera, IC-3140_2-way_audio_mami_baby.jpg

Edimax IC-3140W HD Wireless Day & Night Network Camera, IC-3140_2-way_audio_thief_deterrent_alarm.jpg











High Quality Videos
The IC-3140W is built with a wide F2.0 lens which covers an impressive diagonal viewing angle of 78 degrees. With a megapixel CMOS sensor, the network camera is able to capture up to 720p (1280 x 720) videos at 24 frames per second.



Edimax IC-3140W HD Wireless Day & Night Network Camera, IC-3140W_HD_720P_image.jpg









MicroSD/SDHC Card Slot for Local Storage
A built-in MicroSD/SDHC card slot supports cards up to 64GB for local storage and backup.



Edimax IC-3140W HD Wireless Day & Night Network Camera, IC-3140W_MicroSD_card_slot.jpg









SOFTWARE FEATURES

  • Easy remote monitoring via iPhone, iPad, Android, PC & Mac
  • High-speed  H.264 & MJPEG video compression
  • Motion & sound detected video to SD card, ftp or email
  • Pre- & post-recording on motion detection
  • Viewer software to access 16 network cameras simultaneously
  • Manual/scheduled/cycle recording




Edimax IC-3140W HD Wireless Day & Night Network Camera, IC-3140W_3-step_setup.jpg
Edimax IC-3140W HD Wireless Day & Night Network Camera, Network_Camera_application.jpg












APPLICATION DIAGRAM



Edimax IC-3140W HD Wireless Day & Night Network Camera, IC-3140W_applications_diagram.jpg

Spec




SPECIFICATIONS


FUNCTIONS

MANAGEMENT

INTERFACE

•Easy remote monitoring via iPhone, iPad, Android, PC & Mac
•78 degree diagonal viewing angle
•Supports dynamic DNS service
•IR filer embedded
•Built-in microphone and speaker for two-way audio (half-duplex mode)
•Built-in Passive infrared (PIR) sensor for enhanced motion detection
•Motion/sound detection recording and alerts to MicroSD/SDHC card, email and FTP
•MicroSD/SDHC card slot for local storage



•EdiView Finder (Windows/Mac)
•16-channel viewer
•Web management interface
•Firmware upgradable
•iPhone & iPad viewer app
•Android viewer app

•10/100Mbps Fast Ethernet (RJ-45) port
•Power jack
•Reset/WPS button
•Internal antenna

•/MicroSD/SDHC card solt
•Passive infrared (PIR) sensor
•Light sensor
•Microphone
•Speaker
•IR LEDs: 4

•LED indicators: Internet, LAN/Wi-Fi LNK/ACT, Power

VIDEO

VIDEO SETTINGS

SUPPORTED PROTOCOLS

•High-speed H.264 & MJPEG video compression
•1280 x 720 at up to 24 fps
•640 x 480 at up to 30 fps
•320 x 240 at up to 30 fps

•Resolution: HD (1280 x 720), VGA (640 x480), QVGA (320 x 240)
•Frame rate: 5, 10, 15, 20, 24 or 30 fps

•IPv4, HTTP, TCP, ICMP, RTSP, RTP, UDP, RTCP, SMTP, SNTP, FTP, DHCP, ARP, DNS, PPPoE

STANDARDS

RF OUTPUT POWER

IR LEDS
