A1200PE

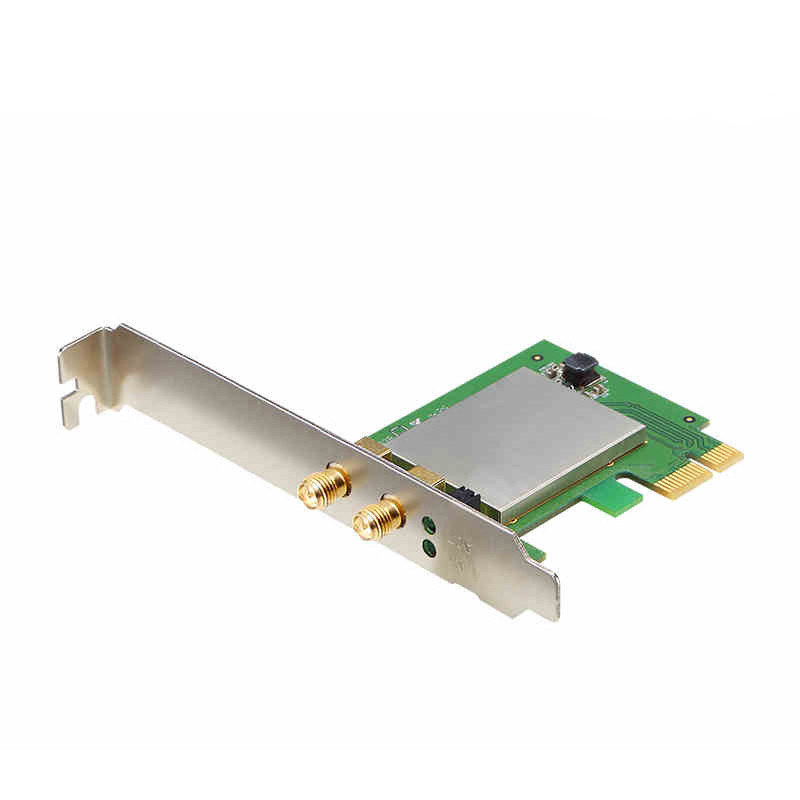

AC1200 Wireless Dual Band PCI-E Card

  • IEEE 802.11ac/n/g/b/a, up to 867Mbps (5G) or 300Mbps (2.4G)
  • Two SMA interface, one integrated antenna.
  • Next generation 11ac WiFi for superior wireless performance.
  • Supports 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES) encryption.
  • Works with all existing network infrastructure.
  • Easy to configure and monitor.
  • Supports Window 10/8/7/Vista and Linux.

Spec




Brand
TOTOLINK
Model
A1200PE
Standards
IEEE 802.11ac n/g/b/a
RF Frequency
2.4GHz/5GHz
Data Rate
- 2.4G: up to 300Mbps
- 5G: up to 867Mbps
ELRP
< 20dBm
Wireless Security
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
Reception Sensiticity
- 2.4G:  11b  11M: -81 dbm
               11g  54M: -68 dbm
               11n: HT20: -65 dbm
                      HT40: -62 dbm
- 5G:  11a  54M: -68 dbm
                  HT20 -65 dbm
                  HT40: -62 dbm
           11ac  HT80: -61dbm
Interface
PCI-E
Power Supply
9V DC/0.8A
Button
1 * RST/WPS Button
LED Indicator
1* LINK, 1* ACT

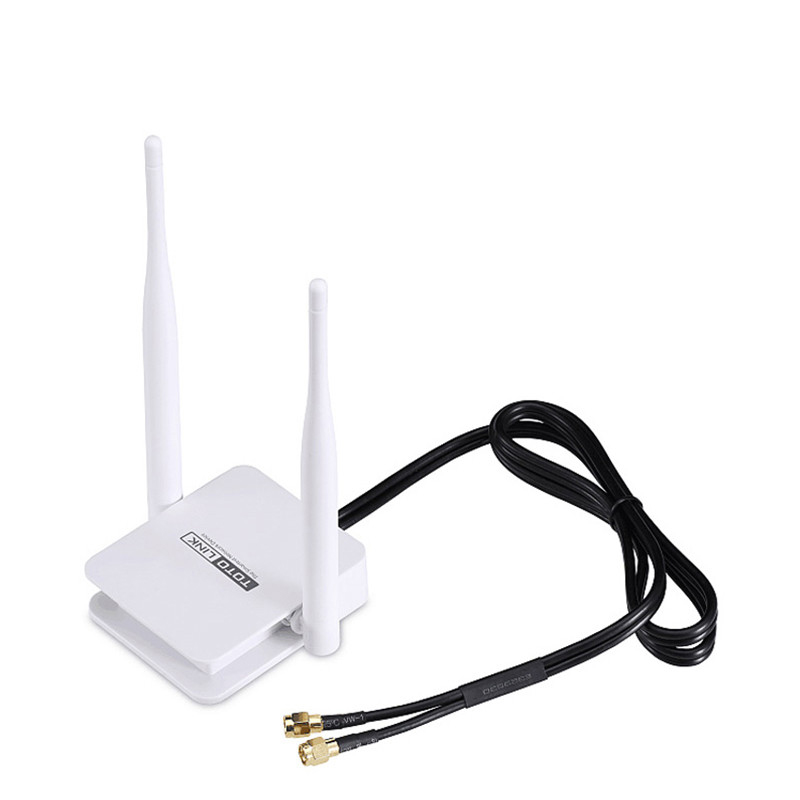

Antenna
2 * 5dBi desktop antennas
System Requirement
- Windows 10 (32/64bits), Windows 8 (32/64bits), Windows 7 (32/64bits)
- Linux

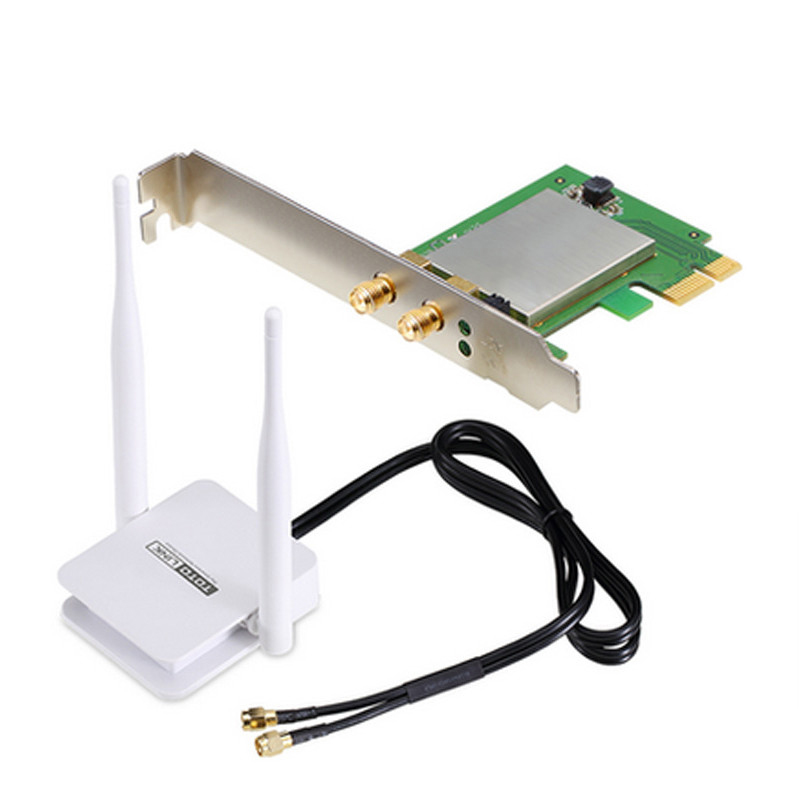

Package Contents
- 1 *A1200PE Wireless Adapter
- 2 *Desktop antenna
- 1 *Resource CD
- 1 *Low Profile Bracket
- 1 *Quick Installation Guide
