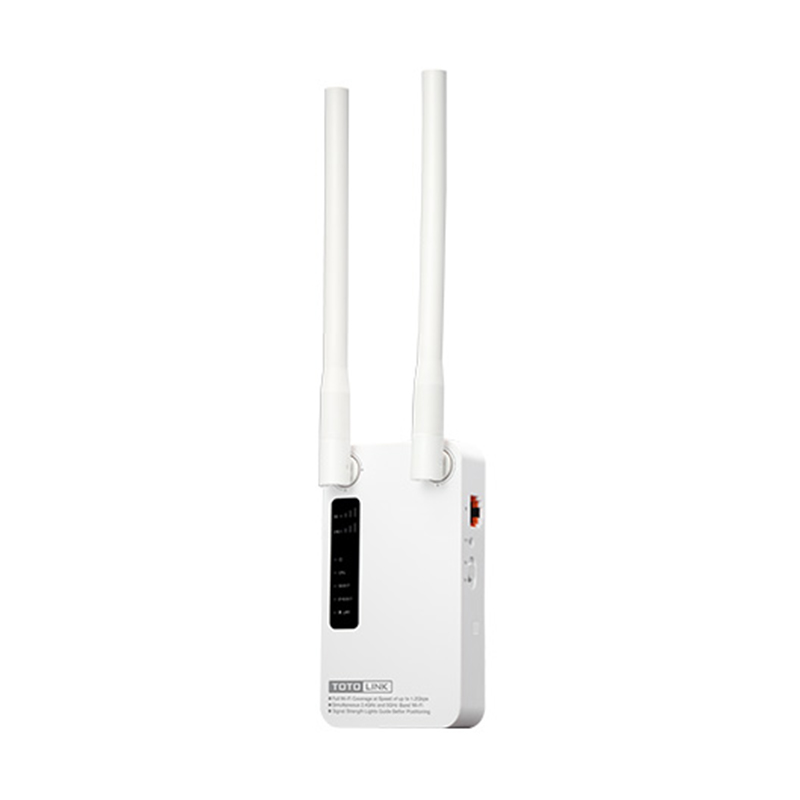

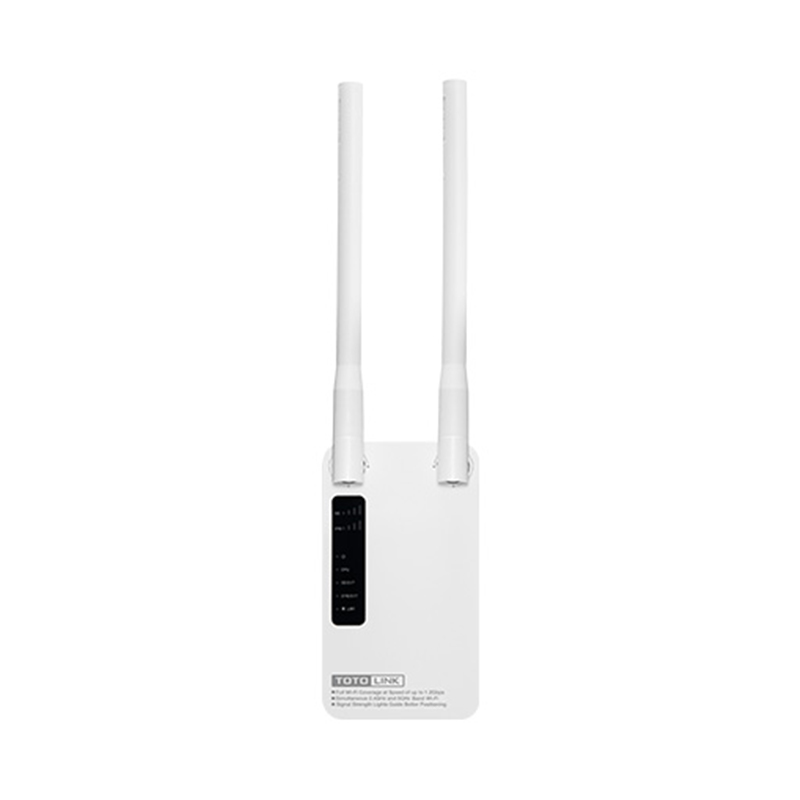

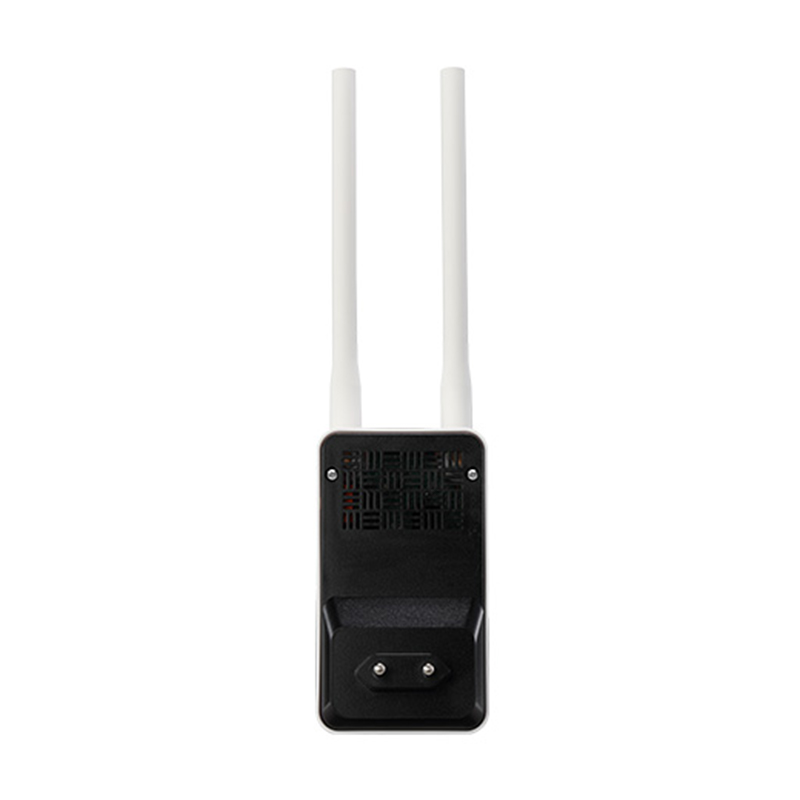

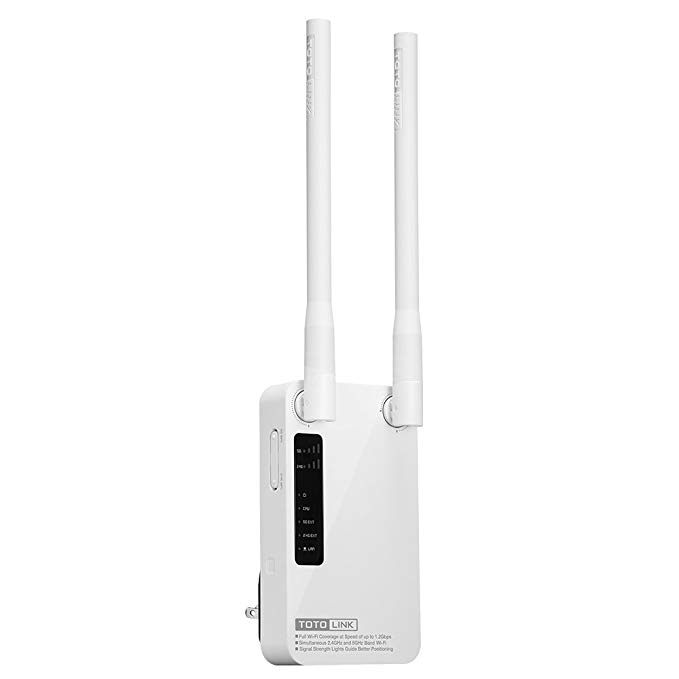

EX1200M
AC1200 Dual Band Wi-Fi Range Extender
- Complies with 802.11ac/a/b/g/n standards.
- Turns your single band Wi-Fi to dual band Wi-Fi.
- Delivers up to 300Mbps on 2.4G band or 867Mbps on 5G band.
- Two external antennas enhance the throughput’s stability.
- Supports handy APP for flexible Wi-Fi extension and network management.
- Supports easy and quick setup by smart phones.
- Supports WPS (Wi-Fi Protected Setup) with one-click button.
- Two signal strength LED indicators help you get optimum position for extender.
- Supports two working modes: AP Mode and Extender Mode.
- Wi-Fi Scheduler is better for parental control to prevent children caught in the Web.
- Wall-plug design saves your space.
Spec
| Brand | TOTOLINK |
| Model | EX1200M |
| Standards | IEEE802.11ac n/g/b/a |
| RF Frequency | 2.4GHz/5GHz |
| Data Rate |
- 2.4GHz: 300Mbps
- 5GHz: 867Mbps |
| WiFi Speed | AC1200 |
| EIRP |
- 2.4GHz < 20dBm
- 5GHz < 23dBm |
| Reception Sensitivity |
- 2.4G: 11b:<-79dBm；11g：<-68dBm；11n:HT20<-65dBm HT40：<-61dBm
- 5G: 11a:<-68dBm；11ac: HT20<-65dBm HT40：<-61dBm HT80：<-51dBm |
| Advanced Features |
- Easy Wi-Fi Extension by Smart Phone
- TOTOLINK APP |
| Interface | 1 *10/100Mbps Ethernet port |
| Power Supply | AC 100V~240V / 50~60Hz 0.1A |
| ntenna | 2 *5dBi External Antennas |
| Button | 1 *5GHz WPS , 1*2.4GHz WPS, 1 *Power ON/OFF Slide Switch, 1*RST |
| LED Indicators | 1 *2.4G, 1 *5G, 1 *Power, 1 *CPU, 1 *5G EXT, 1 *2.4G EXT, 1 *LAN |
| Dimensions (L x W x H) | 4.6 x 2.8 x 2.6 in. (117 x 72 x 66mm) |
| Package Contents |
- 1 *EX1200M Wireless Extender
- 1 *Quick Installation Guide |
