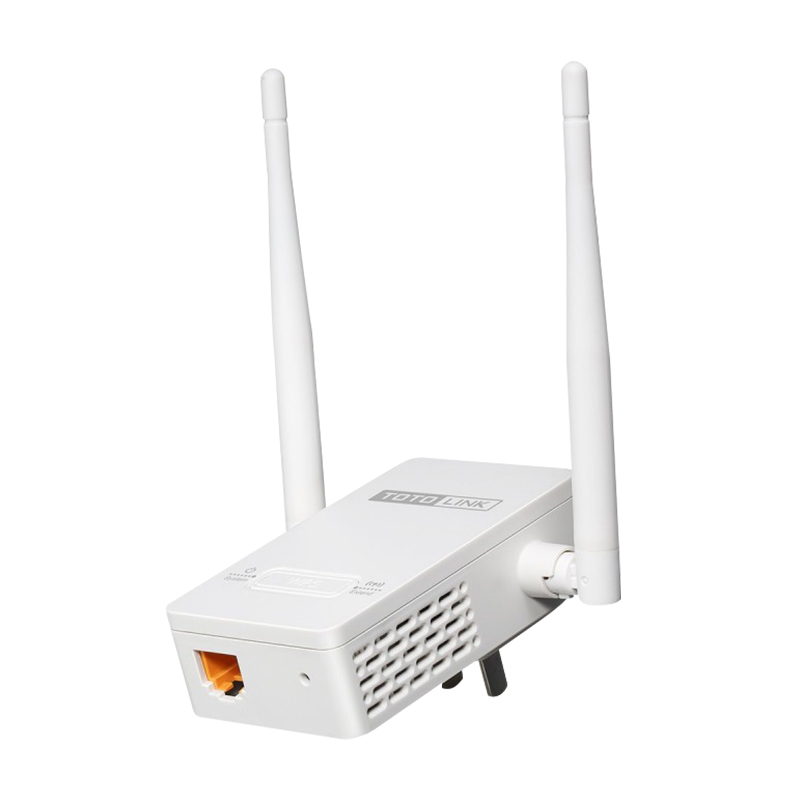

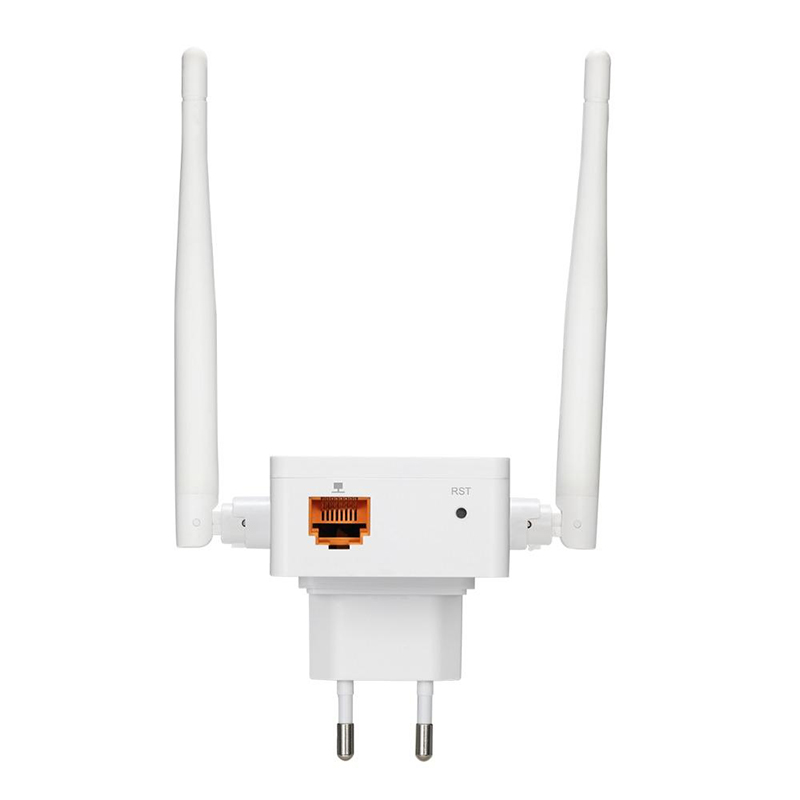

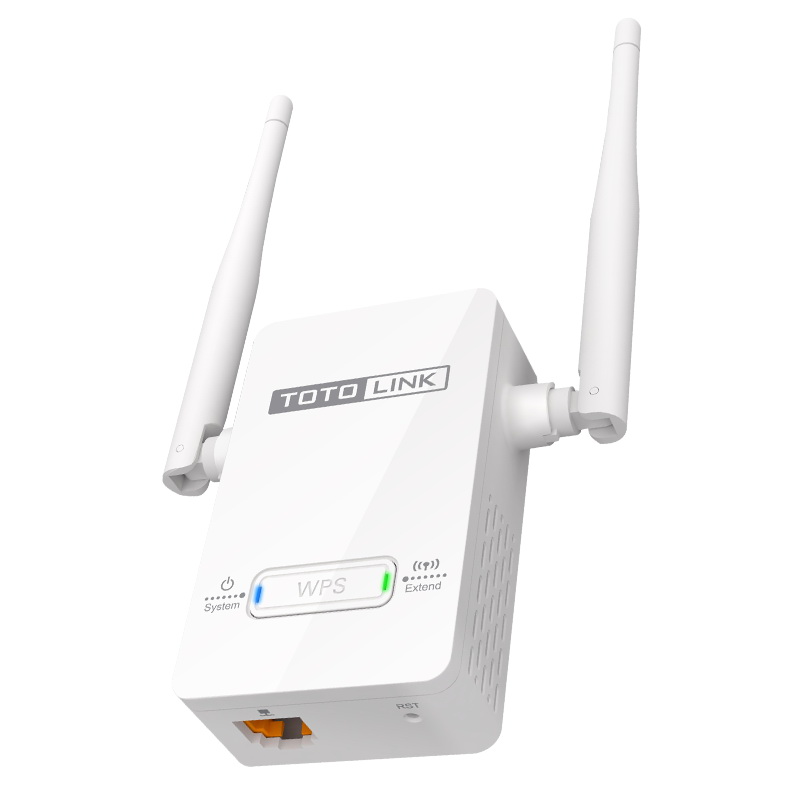

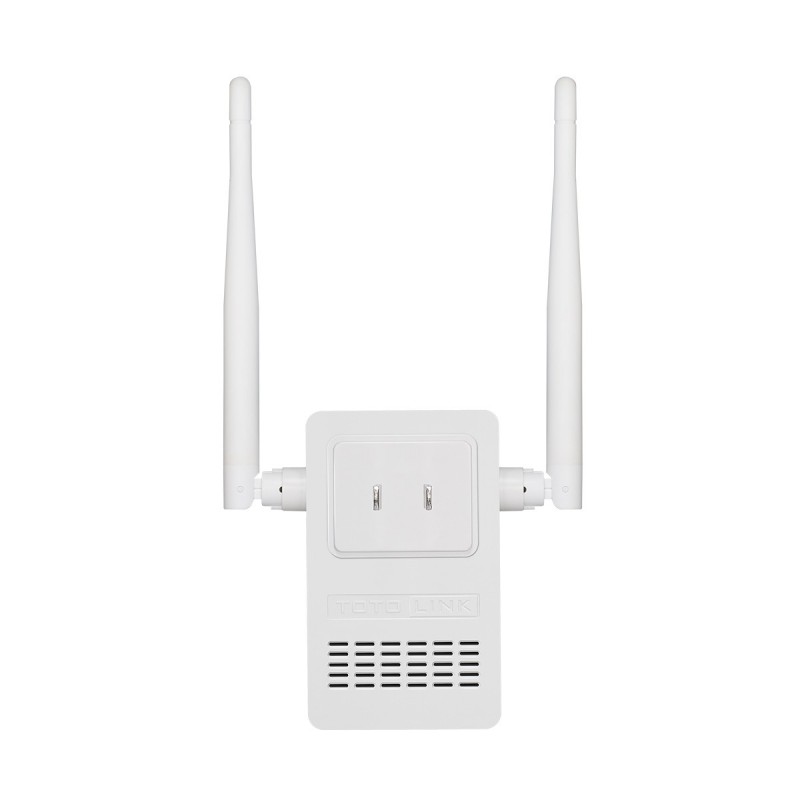

N300 Wireless Range Extender
  • Complies with 802.11b/g/n standards.
  • Up to 300Mbps date rate for Wi-Fi network.
  • Two external antennas enhance the throughput’s stability.
  • Portable and compact stylish design.
  • Supports quick setting by smart phone.
  • Supports WPS (Wi-Fi Protected Setup) Wi-Fi extension by one-click.
  • One Ethernet port for connecting wired devices to wireless network.
  • Energy saving and environmental protection.



Model EX200
Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
RF Frequency 2.4~2.4835GHz
WiFi Speed 300Mbps
Data Rate Up to 300Mbps
EIRP < 20dBm
Wireless Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
Reception Sensitivity
- 11b  11M: - 81 dBm
- 11g  54M: - 68 dBm
- 11n  HT20:  - 65 dBm
          HT40:  - 62 dBm
Interface 1 *10/100BaseTX (Auto MDI/MDIX) RJ45 port
Power Supply 5V /1A internal power
Antenna 2 *4dBi External Antennas
Button 1* WPS Button, 1*RST Button
LED  Indicators 1 *SYS, 1* Wi-Fi
Dimensions (L x W x H)   2.0 x 3.4 x 1.2 in. (52 x 85.7 x 30.9mm)
Package Contents - 1 *EX200 Wireless Extender
- 1 *Quick Installation Guide
