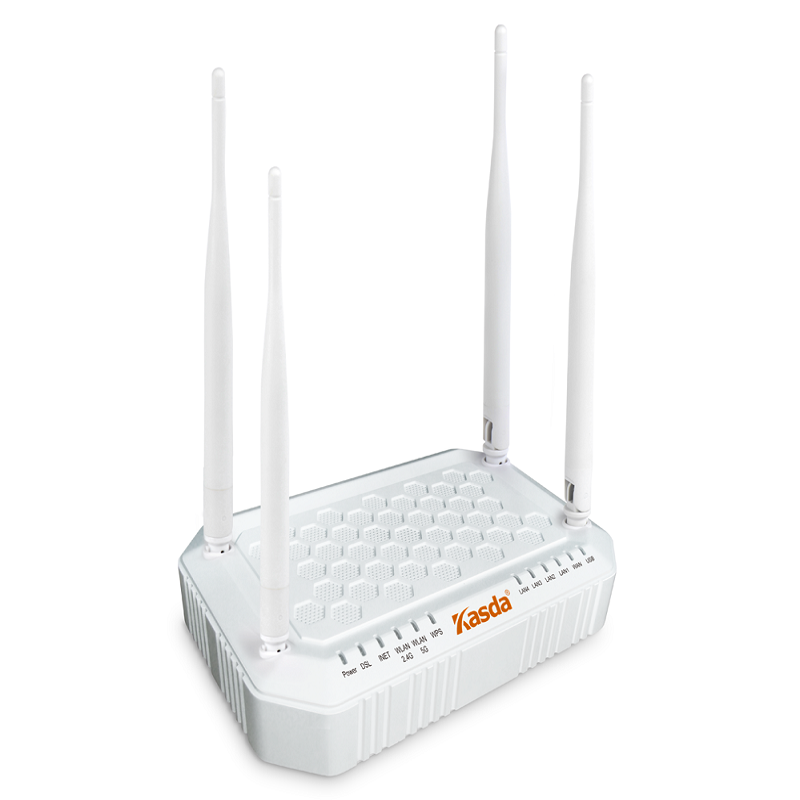

KW62293



11AC 1200Mbps VDSL Modem Wi-Fi Router
  • WPS Security – Offers one button security
  • Gigabit  Ethernet Port – 1 Gigabit Ethernet WAN port for Internet access and 4 Gigabit Ethernet LAN ports wired connection
  • IPv6 – Support next generation network
  • Multi-antenna – 2T2R wireless transmission speed up to 300Mbps for 2.4GHz and 2T2R speed up to 900Mbps for 5GHz
  • Advance security – Wireless WPA/WPA2 encryption keep your network safely connected.
  • 11AC Wi-Fi Speeds – Wireless 802.11b/g/n/ac AP  integrated, wireless rate up to 1200Mbps
  • QoS – Network priority can be determined
  • USB – 1 USB2.0 port for Printer and Storage Sharing
  • Standard – Compliant with VDSL,VDSL2 standards, Support Fall back to ADSL/ADSL2+



Future-proof versatility

Accelerated with Broadcom technology, one of the world's fastest ADSL/VDSL modem Wi-Fi router is availablem with 900 Mbps high speed on 5GHz for streaming videos and gaming and 300Mbps on 2.4GHz for internet browsing and communication. Compatible with ADSL2/2+, VDSL2, fiber and Ethernet wiring, versatile features and specification promise future-proofing.

Fast sharing through USB3.0



Access your large files and media instantly with USB 3.0, or share your printer with it, all supported with high streaming speed, save you time and effort for family joy under uninterrupted network



World's fastest AC Wi-Fi of the 5th generation(5G)

Compared to 11N Wi-Fi, the 5GHz 11AC Wi-Fi with expanded and accelerated bandwidth has higher capacity you need to increase enjoyment with your favorite applications at home. The upgrade technology has certainly surpass our expectations and needs for streaming speed.



Spec

Product Number KW62293
Wi-Fi Technology Wireless 802.11b/g/n/ac AP integrated
Wi-Fi Performance 1200 Mbps
Wi-Fi Range Large homes
Wi-Fi Band 2.4GHz & 5GHz
RF Output Power Min: 14dbm
Max: 17dbm
Antenna Gain 5dbi
Transmit Power(EIRP) Min: 17dbm
Max: 20dbm
Power Step Up 0.5dbm
Number of Ethernet Ports 4 Gigabit Ethernet LAN ports & 1 Gigabit Ethernet WAN port
Key Features

Support Fall back to ADSL/ADSL2+

1 USB Port for printer or storage sharing

Wizard Installation

Integrated With TR-069 Client

Transparent Bridge working mode

ITU-T:992.3(ADSL2),992.5(ADSL2+),993.2(VDSL2), 993.1 (VDSL)

Enable multimode operability with VDSL2 and ADSL2/ADSL2+

802.1p Qos,4 Queues support

PPPOE,PPPOA,IPOE,IPOA,Bridge service type

Multiple PVC up to 8 groups

DHCP server,relay and client

On/off LED lights option


Security

PAP/CHAP Authentication for PPP mode

NAT for basic Firewall support

State Packet Inspection (SPI) for Firewall with denial-of-service (DoS) protection

ALG (Application-level gateway) for NAT/PAT support

2 Level (User/Admin) Password Authentication to Router

IP Filtering

Security IEEE 802.11x Supports 64/128 bits WEP, WPA, WPA2, WPA/WPA2-PSK

MAC Filtering

Parental control


Processor RTL8685P+RTL8192ER+RTL8188AR+RTL8275S
Memory 128MB RAM, 4MB FLASH
Physical Specifications

Four External Antennas

Power 12V/1A
Package Contents

DSL Router

Telephone Line

Ethernet cable

External Splitter

Power adapter

Installation Manual


System Requirements

Microsoft® Windows 7, 8, 8.1, Vista®, XP®, 2000, Mac OS®, UNIX®, or Linux®

Microsoft® Internet Explorer® 5.0, Firefox® 2.0, Safari® 1.4, or Google Chrome™ 11.0 browsers or higher
