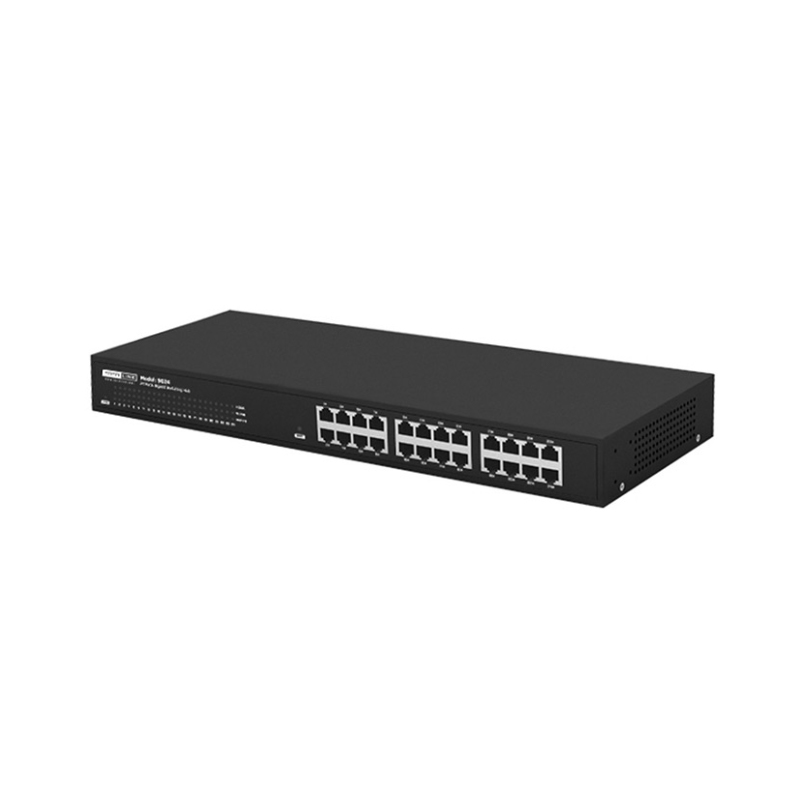

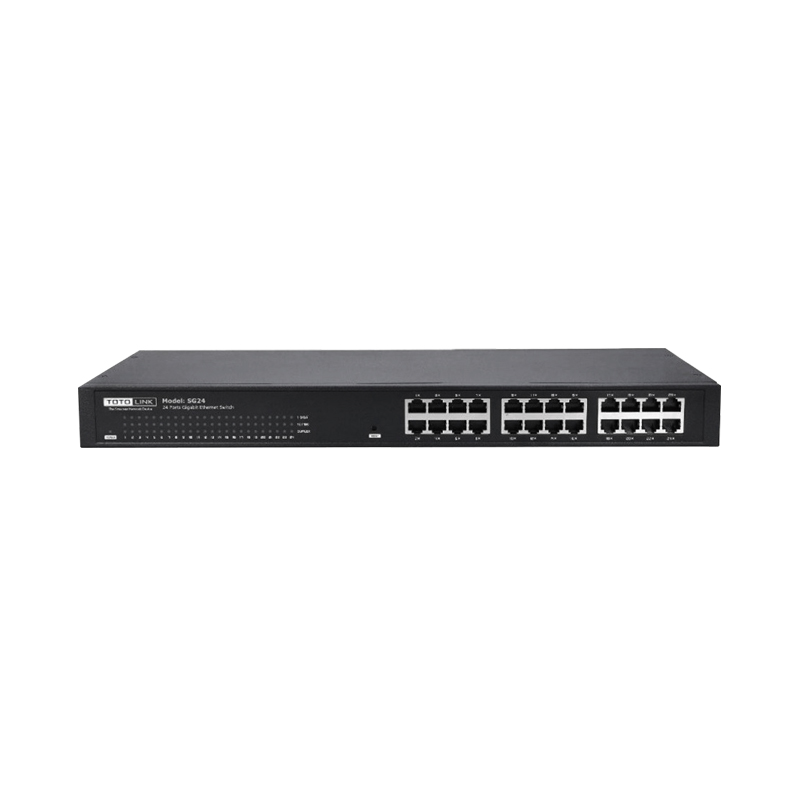

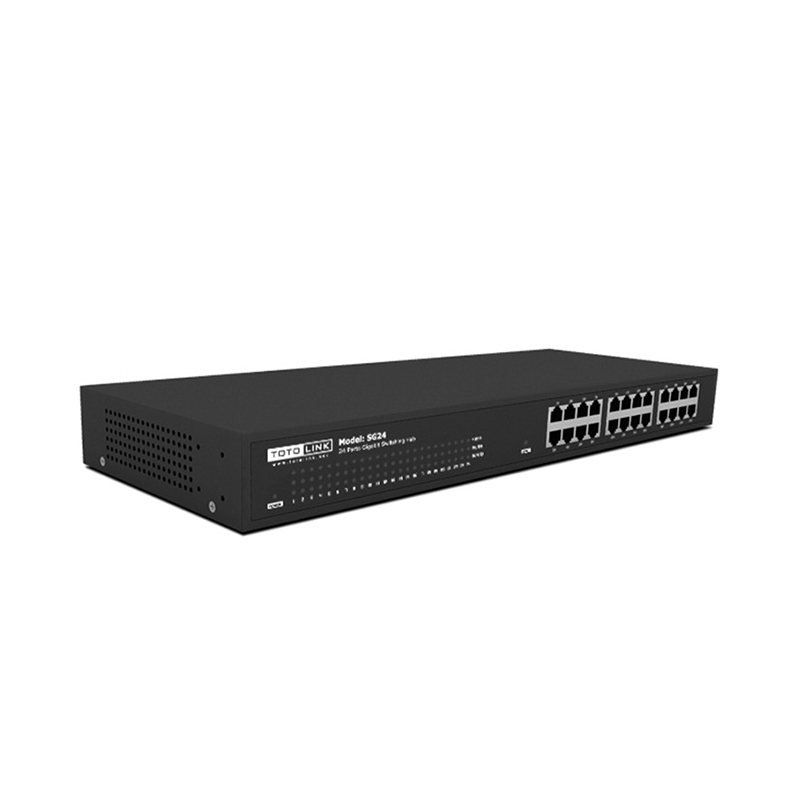

SG24
24-Port Gigabit Unmanaged Switch
- Complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x standards.
- 24 10/100/1000Mbps auto-negotiation ports.
- Supports flow control for each port.
- Supports store and forward switching scheme capability.
- Supports NWay auto-negotiation for all ports.
- Supports auto MDI/MDIX for each port.
- Supports per-port bandwidth control.
- Supports PHY register read/write access.
Spec
| Brand | TOTOLINK |
| Model | SG24 |
| Standards | IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3X |
| Interface | 24 * 10/100Mbps auto-negotiation RJ-45 Ports (Auto MDI/MDIX) |

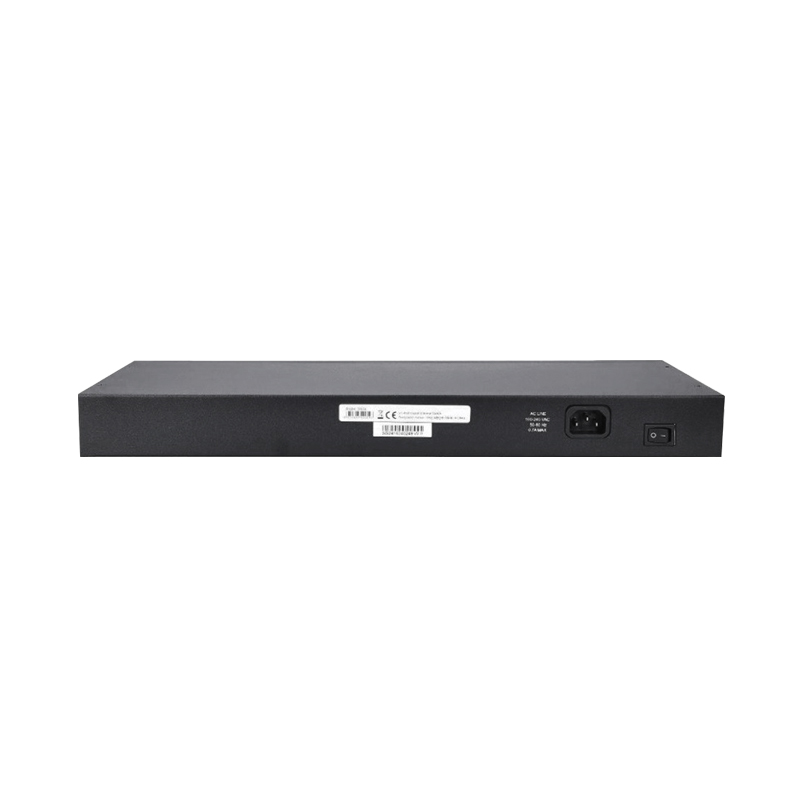

| Power Supply | 100V~240VAC, 50/60Hz |
| Dimensions | 17.3 x 7.1 x 1.7in. (440 x 180 x 44mm) |
| LED | Power, Link/Activity |
| MAC Address Learning | Auto-learning, auto update |
| MAC Address Table | 8K |
| Network Media | - 10Base-T: UTP Cat 3, 4, 5 cable (100m, max.) - EIA/TIA-568 100Ω STP (100m max.) - 100Base-Tx: UTP Cat 5, 5e cable (100m, max.) - EIA/TIA-568 100Ω STP (100m max.) - 1000Base-T: UTP Cat 5, 5e cable (100m, max.) |
| Four Working Modes | - M1: Flow Control OFF - M2: Flow Control ON - M3: 23/24 Ports Aggregation based on MAC sources - M4: 1-22 Port Isolation, 23~24 Port Uplink. |
| Frame Filtering | - 10Mbps: 14,880pps - 100Mbps: 148,800pps - 1000Mbps: 1,488,000pps |
| Backup Bandwidth | 4.8Gbps |
| Transmission Method | Store-and-forward |
| Environment | - Operating Temperature: 0℃~40℃ (32℉~104℉) - Storage Temperature: -40~70℃ (-40℉~158℉) - Operating Humidity: 10%~90% non-condensing - Storage Humidity: 5%~95% non-condensing |
