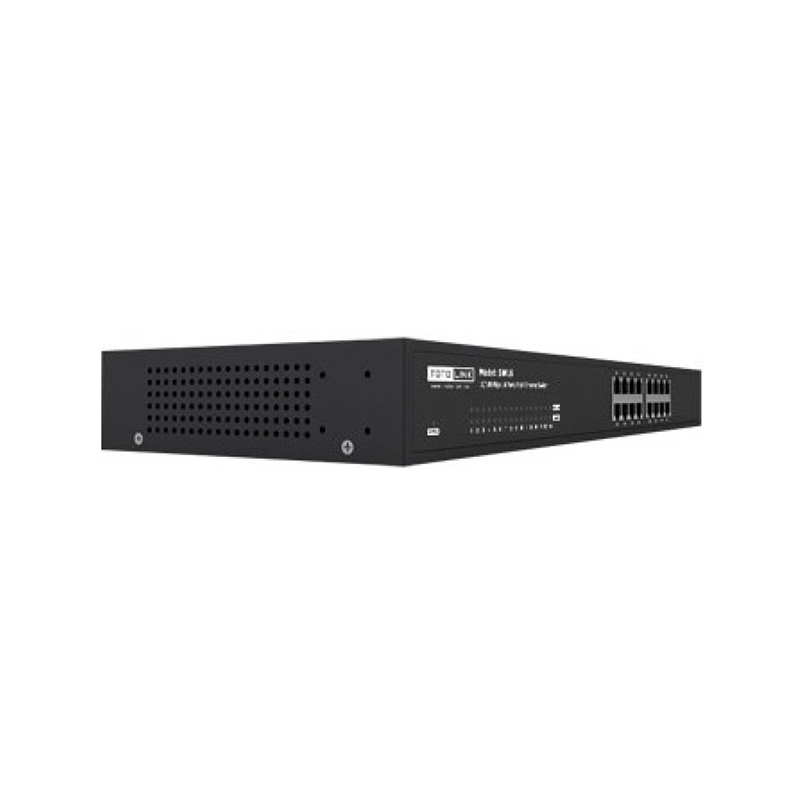

SW16
16-Port 10/100Mbps Unmanaged Switch
- Complies with IEEE 802.3, IEEE 802.3u and IEEE 802.3x standards.
- Provides 16 10/100Mbps auto-negotiation ports.
- Supports IEEE 802.3x flow control for full duplex mode and backpressure for half-duplex mode.
- Supports MAC address auto-learning and auto-aging.
- LED indicators for monitoring power, link and activity.
- Plastic case, desktop or wall-mounting design.
- External power supply.
Spec
| Brand | TOTOLINK |
| Model | SW16 |
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Interface | 16*10/100Mbps auto-negotiation RJ-45 Ports (Auto MDI/MDIX) |
| Power Supply | 3.3V DC/2A |
| Dimensions | 17.3 x 7.1 x 1.7in. (440 x 180 x 44mm) |
| LED | Power, Link/Activity |
| MAC Address Learning | Auto-learning, auto update |
| MAC Address Table | 8K |
| Network Media | - 10Base-T: UTP Cat 3, 4, 5 cable (100m, max.) - EIA/TIA-568 100Ω STP (100m max.) - 100Base-Tx: UTP Cat 5, 5e cable (100m, max.) - EIA/TIA-568 1100Ω STP (100m max.) |
| Backup Bandwidth | 3.2Gbps |
| Transmission Method | Store-and-forward |
| Environment | - Operating Temperature: 0℃~40℃ (32℉~104℉) - Storage Temperature: -40~70℃ (-40℉~158℉) - Operating Humidity: 10%~90% non-condensing - Storage Humidity: 5%~95% non-condensing |
