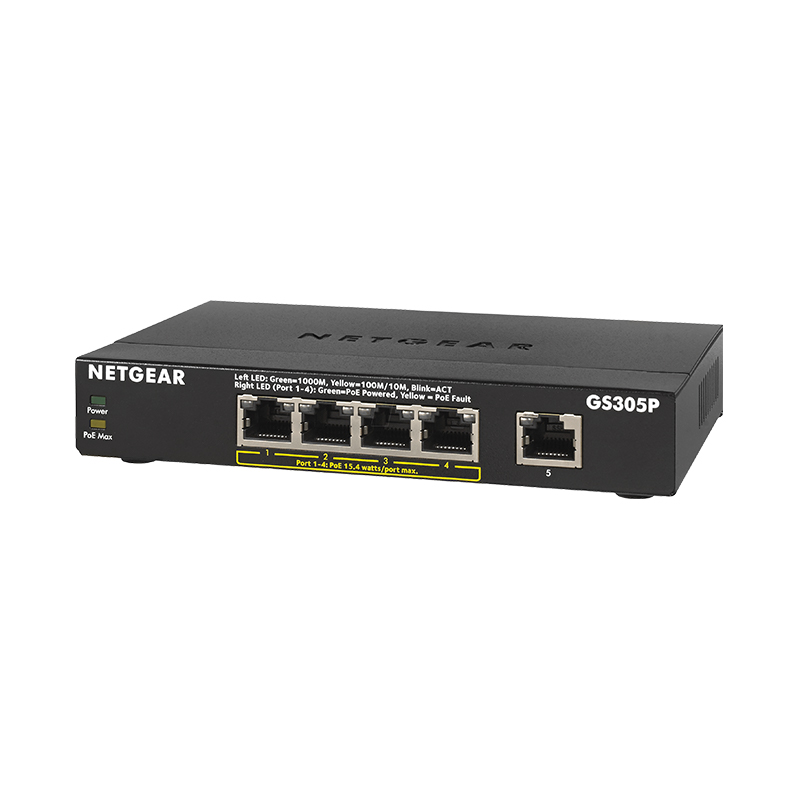

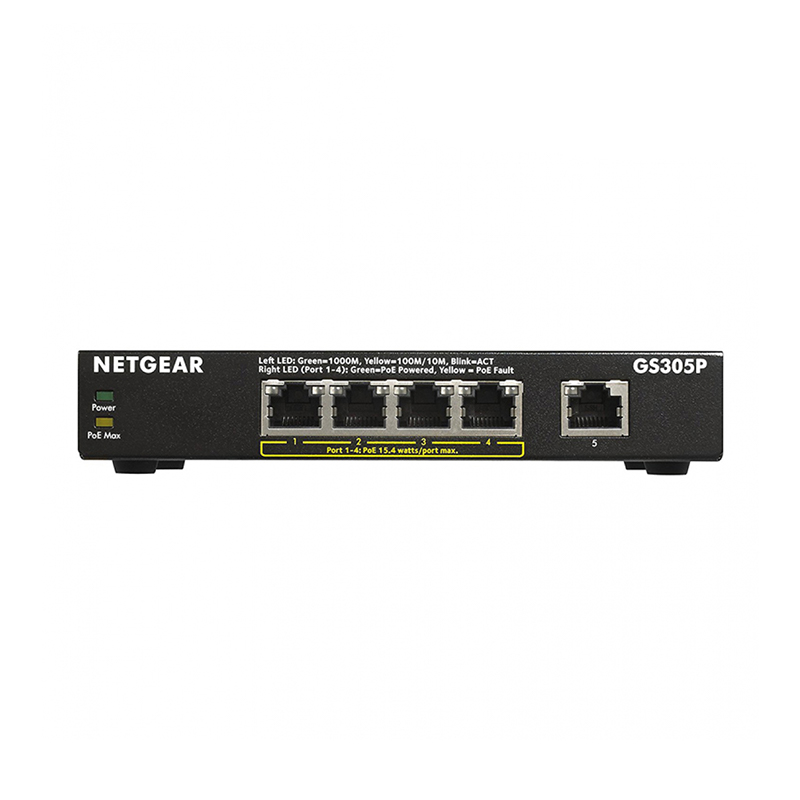

GS305P (SOHO Ethernet Switch Series)
5 Port Gigabit Ethernet Unmanaged Switch with 4-Port PoE
- Choice of Fast Ethernet and Gigabit Ethernet connectivity
- Energy-efficient technology for power savings
- Auto-MDI/MDIX eliminates the need for crossover cables
- Non-blocking switching architecture for maximum throughput at wire speed
- Auto-negotiation for automatic connection at the highest common speed between switch and an end device
- Power-over-Ethernet (PoE) option available for powering IP Security Cameras, VoIP phones, wireless access points, and other PD-powered devices
- Fanless design for silent operation
- Desktop, wall-mountable or rack-mountable (GS324, GS348)
Spec
| Brand | NETGEAR |
| Model | GS305P |
| Datasheet (PDF) | |
| Model Description | 5-Port Gigabit Ethernet Switch with 4-Ports PoE |
| Speed | Gigabit |
| Number of Ports | 5 port |
| PoE Ports / Max Power Per Port | Ports 1-4 / 15.4W (802.3af) |
| PoE Max Power Supplied (All Ports) | 55.5W |
| Connector Type & Switch Housing | Metal |
| LEDs | Power, Link/Activity (Left), Ports 1-4: PoE Power (Right) |
| Short cable power saving | Yes |
| Energy Efficient Ethernet Support (IEEE 802.3az) |
Yes |
| Energy Efficlency | • Jumbo Frame Support : 9,720 bytes • MAC Table Size : 2K • Packet buffer size : 128 KB • DC Power Adapter : 48V / 1.25A • Max Power Consumption (Watts) : 60.0W |
| Acoustic Noise Level @ 25° C (dBA) | 0 dBA (Fanless) |
| Operating Temperature | 0° to 40°C (32° to 104°F) |
| MTBF (@ 25° C) | 2,244,211 hours |
| Electromagnetic compliance (A or B) | Class A |
| Form Factor | Desktop or wall-mountable |
| Packege Contents | - 5 Port Gigabit Ethernet Unmanaged Switch with 4-Port PoE (GS305P) - AC power adapter (localized to country of sale) - Quick Installation Guide |
