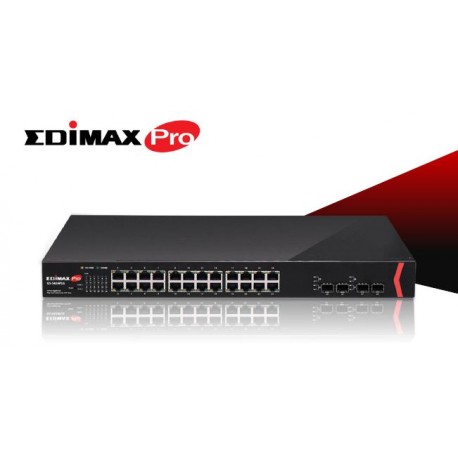

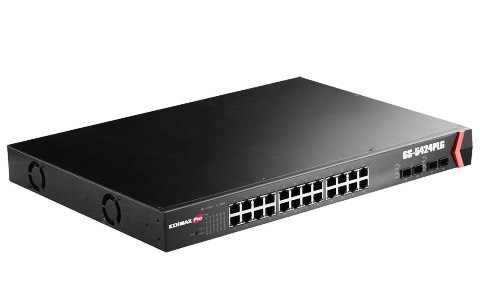

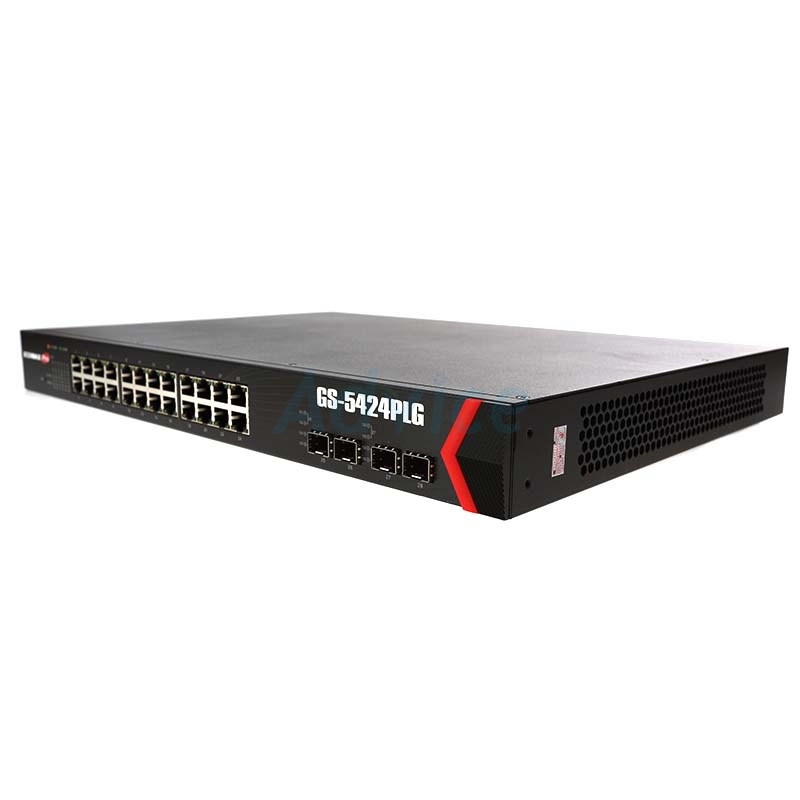

The Edimax Pro GS-5424PLG is a web-smart switch with 24 Gigabit PoE+ ports and 4 Gigabit SFP slots. Designed for medium to large network environments, its standard 19-inch 1U rack-mount brackets allow for integration with the most widely used mounting systems on the market. The Edimax GS-5424PLG is a superb choice to boost your network environment’s performance and efficiency.
IEEE 802.3at/af Power over Ethernet Standard
The GS-5424PLG features 24 IEEE 802.3at Power over Ethernet (PoE+) ports which supply up to 30W of electricity per port, and has a total power supply of 400W to power any IEEE 802.3at or 802.3af compliant power device. With PoE detection capability, the GS-5424PLG is able to verify whether the connected device is IEEE 802.3at or 802.3af compliant. In the event that a PoE device is not detected, only network data will be transmitted through the LAN cable. The GS-5424PLG can be used with different PoE products such as access points, network cameras or VoIP devices and is an effective solution for network environments where power outlets are difficult to access.
PoE for Easy Installation and Better Cost Efficiency
Power over Ethernet technology enables the Ethernet cable to carry both data and power, reducing cable installation and eliminating the need for extension cords or electrical outlets on the walls and ceiling. Overall the GS-5424PLG can lower installation cost and simplify deployment efforts.
Power-Budget User Interface for PoE Device Management
The GS-5424PLG features an innovative power-budget UI (user interface) which allows IT managers to monitor the power consumption of each PoE port and the total power consumption of connected PoE devices. Monitor the entire PoE network and assess the total power usage before adding new PoE devices to the network architecture. The power-budget UI also features a remote on/off function for each PoE port, so manual plug/unplug isn’t necessary when a PoE device hangs. Simply use the remote power button to quickly reset the device.
Smart Tools for Improved Network Efficiency
The GS-5424PLG features smart network monitoring tools that allow for improved network efficiency. Security and management features include bandwidth control and VLAN (IEEE 802.1Q VLAN tagging and port-based VLAN). Using its web-based interface, administrators can set up VLANs to segregate traffic and configure link aggregation settings to create fat traffic pipelines. Additionally, these features offer extra protection on the network edge and the password-protected configuration interface can be accessed remotely.
|Ports||24 Port RJ-45 10/100/1000Base-T PoE ports
4 Port 1000Base-X SFP slots
|Transmission Method||Store and forward|
|LED Indicators||Per Port: Link/Act
Per Unit: Power
|Power Input||100-240V AC, 50-60 Hz, internal power supply|
|Total Power Budget||400W|
|Dimensions (L x W x H)||441 × 310 × 44 mm|
|Forwarding Rate||35.7 Mpps|
|Filtering/Forwarding Rates||1000Mbps port – 1,488,000pps
100Mbps port - 148,800pps
10Mbps port - 14,880pps
|POWER OVER ETHERNET|
|Standard||IEEE 802.3af, IEEE 802.3at|
|Power Output||Up to 30W per port|
|Pin Assignment||1/2(+), 3/6(-) End-Span (mode A)|
|Available Power Budget||330W|
|Management||PoE status, PoE on/off, PoE live checking, per port power priority setting|
|VLAN||Up to 200 VLANs and 4096 VLAN IDs
802.1Q tag-based VLAN
|Port Trunking||IEEE 802.3ad LACP Trunk-Static trunk up to 8 trunk groups|
|IGMP Snooping||IGMP v1/v2 snooping|
|Mirror||Port mirroring both on ingress and egress traffic|
|Management||User Interface: Web-based management
User Account: Login account configuration
Firmware Upgrade: Firmware upgrade by WEB
Syslog: Support event log, alarm log and security log
|Security||IMPB: Support IP-MAC-Port binding
Rate Limit: Rate Limit on ingress and egress traffic
