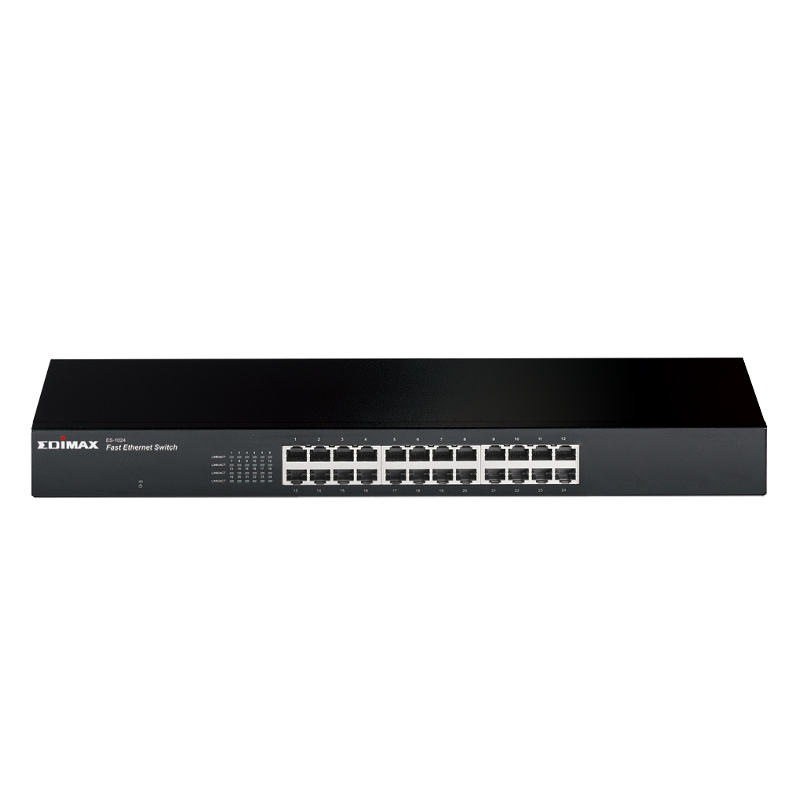

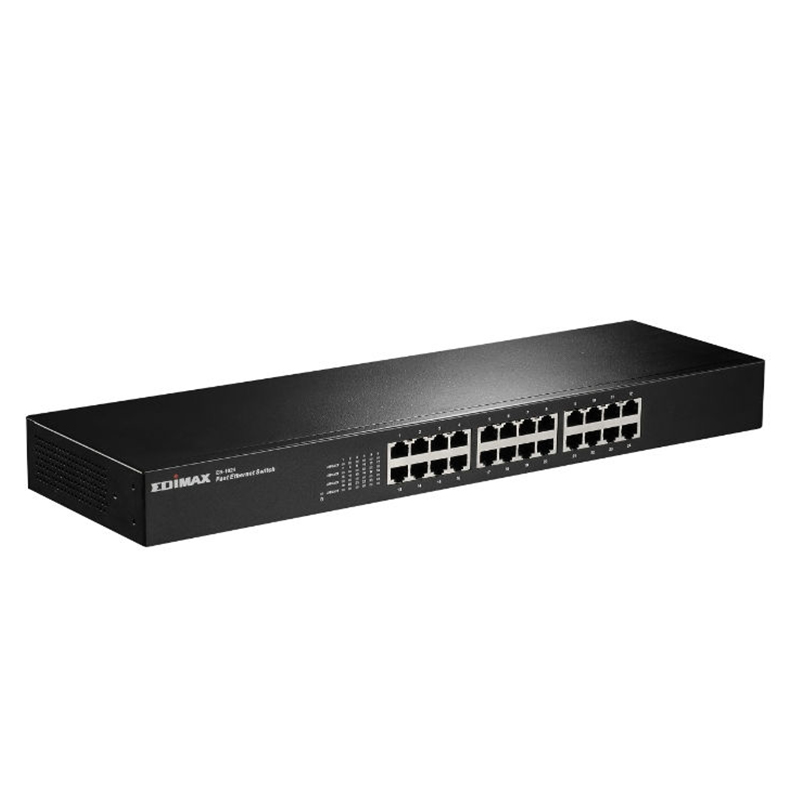

ES-1024

24-Port Fast Ethernet Rack-mount Switch


The ES-1024 is 24-port Fast Ethernet rack-mount switch, that is designed for medium or large network environment to strengthen its network connection. Including rack-mount brackets, the 19“ size switch fits into your rack cabinet. It is a superb choice to boost your network with higher performance and efficiency.


IEEE Energy Efficient Ethernet (EEE) compliance saves power up to 59%
The Switch ES-1024 offers environmental efficiency with Fast Ethernet speeds critical for next-generation network applications. To comply with the IEEE802.3az standard, the Switch ES-1026 provides power saving functions to reduce energy consumption to help business save cost.

-Inactive link detection
The power usage adjustment feature automatically reduces power usage when any shut down network device or inactive link is detected. That is, power consumption of the switch can be adjusted according to the link status or the number of active network devices when possible.

-Cable length detection
The devices equipped with this green feature can automatically detect the length of connected Ethernet cables and adjust power usage accordingly. The shorter the cable length, the less power it consumes.

Supports Auto-Negotiation
Every port of the ES-1024 can automatically distinguish the connected network devices are running at 10Mbps, 100Mbps for Half/Full-Duplex mode . The ES-1024 can adjust the speed and mode accordingly.

Supports Non-Blocking Wire Speed
The ES-1024 receives and forwards traffic seamlessly with its non-blocking wire-speed. Every port of the ES-1024 has the speed up to 200Mbps in full-duplex mode simultaneously. This feature provides full wire speed to the connected devices and allows you to run a high speed network smoothly.

Supports Store and Forward Architecture
With the store and forward architecture filters fragment & CRC error packets, the ES-1024 can maximize network performance while minimizing the propagation of bad network packets.

Fan-less Design
Since the fan-less design ensures quiet operation in small office spaces, the ES-1024 is the perfect solution for small business and SOHO office deployments.

Spec


Standards

Features

Filtering/Forwarding Rates



  • IEEE 802.3 10BaseT
  • IEEE 802.3u 100BaseTX
  • IEEE 802.3x Flow Control
  • IEEE 802.3az Energy Efficient Ethernet
  • RJ-45 Ports: 24
  • MAC Address: 8K
  • Buffer Memory: 256KB
  • Transmission Method: Store and Forward
  • 100Mbps port - 148,800pps
  • 10Mbps port - 14,880pps

Transmission Media

LED Indicators

Power Requirement

  • 10BaseT Cat. 3, 4, 5 UTP/STP
  • 100BaseTX Cat. 5 UTP/STP
  • Per Port: Link/Act
  • Per Unit: Power
  • 100 to 240V/AC, 50 to 60Hz

Power Consumption

Dimensions

Weight
  • 4 Watts (Max)
  • 441mm×131mm×44mm (LxWxH)
  • 1.7 kg

Temperature

Humidity

CERTIFICATIONS

  • Operating: 0 to 40℃
  • Storage: -40 to 70℃
  • Operating:10 to 90% RH (non-condensing)
  • Storage: 5 to 90% RH (non-condensing)
  • FCC Class A, CE
