Whole-Home Mesh TOTOLINK (T10) Wireless AC1200 Dual Band Gigabit

AC1200 Smart Home Wi-Fi Router
  • Complies with the next generation IEEE 802.11ac Wi-Fi standard.
  •  867Mbps on 5GHz and 300Mbps on 2.4GHz band for total 1167Mbps simultaneously.
  •  Smart Mesh networking with one touch.
  •  Supports multiple devices extension for wide Wi-Fi coverage.
  •  Wireless roaming helps users auto switch to stronger signal source.
  •  Next-GEN MU-MIMO technology improves user experience comprehensively.
  •  1GHz processor provides powerful performance with low power consumption.
  •  Intelligent Beamforming delivers highly targeted and efficient Wi-Fi connection.
  • Full gigabit WAN and LAN ensures high speed Internet access and wired speed.
  •  Supports DHCP, Static IP and PPPoE broadband functions.
  •  Provides 64/128-bit WEP, WPA, WPA2 and WPA/WPA2 (TKIP+AES) security.
  •  Connects to secure network easily and fast using WPS.
  •  QoS: Bandwidth Control based on IP address.
  •  Classic black and white design with compact size.



Model T10
Standards IEEE 802.11ac n/g/b/a
Frequency Range 2.4GHz/5GHz (Dual-Band)
WiFi Speed AC1200
Data Rate - 2.4GHz: Up to 300Mbps
- 5GHz: Up to 867Mbps
EIRP  - 2.4GHz < 22dBm
- 5GHz < 20dBm
Reception Sensitivity  - 2.4G: 11b: <-81dbm;
            11g: <-68dbm;
            11n: HT20<-65dbm  HT40: <-62dbm

- 5G: 11a:<-68dbm;
         11n: HT20<-65dbm  HT40: <-62dbm
          11ac: <-51dbm

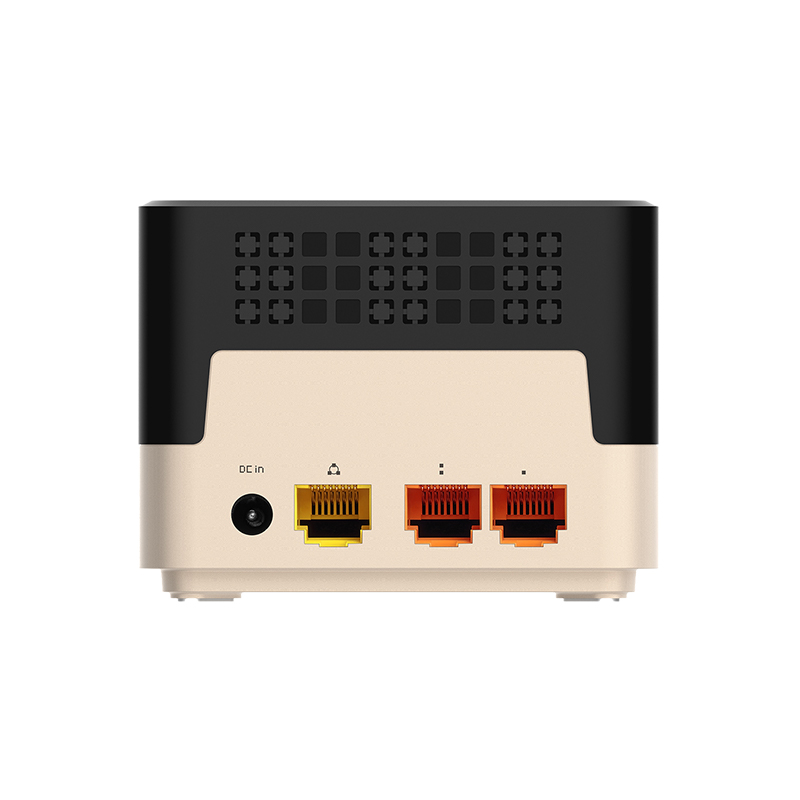

Interface - 2 * 1000Mbps LAN Ports
- 1 * 1000Mbps WAN Port
Operation Mode - Gateway Mode
- Bridge Mode
- Repeater Mode
- WISP Mode
- Mesh Mode
Wireless Security 64/128-bit WEP, WPA, WPA2 and WPA-Mixed
Wireless Mode Multiple SSID, MAC Authentication, Universal Repeater, WDS, WPS
Antennas Internal Antennas
Dimensions 10.8 x 7.2 x 2.4 in. (273.5mm x 182mm x 60.5mm)
Power Supply 12 VDC / 1A
Button - 1 * Mesh / RST Button
LEDS 1 * Status
Firewall MAC Filtering, IP Filtering, Port Filtering, URL Filtering Port Forwarding, DMZ
Management QQoS, DDNS, DoS, WMM, Access Control, IPTV,IPV6 etc.
Package Contents - 1 * T10 Wireless Router
- 1 * Power Adapter
- 1 * Ethernet Cable
- 1 * Quick Installation Guide

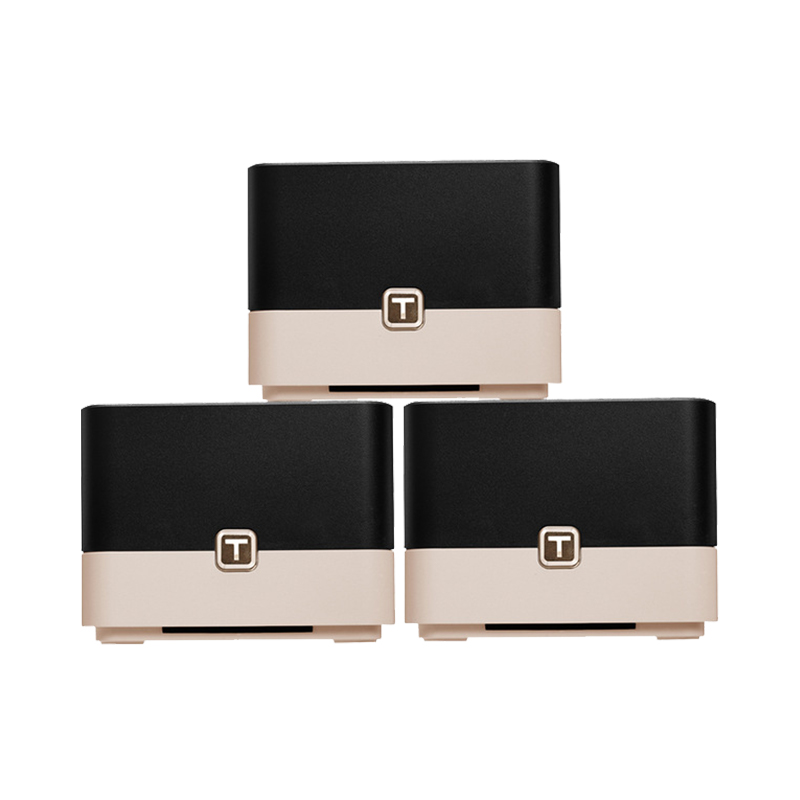

(Remark:The product is 3 in1 package, above is single product specifications)
