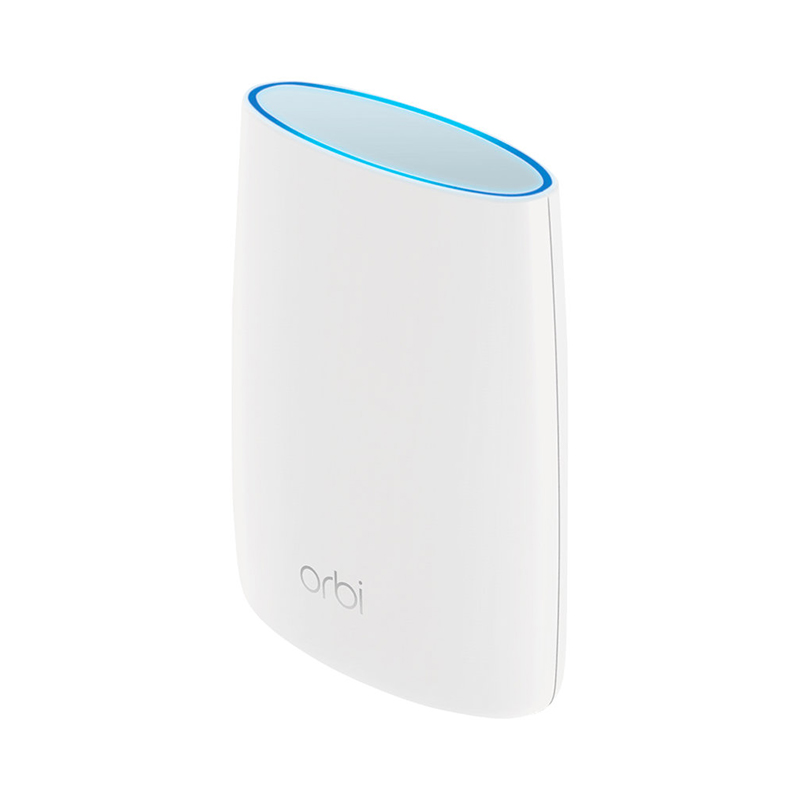

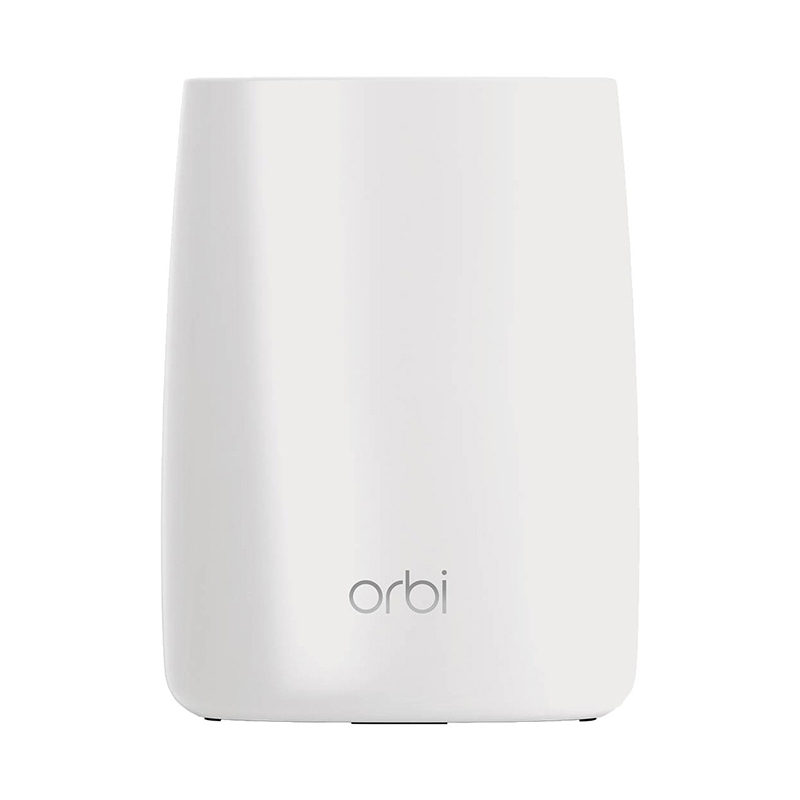

AC3000 Orbi Mesh WiFi System
  • Ultra-Performance Whole Home Mesh WiFi System—Covers up to 7,500 square feet with fast WiFi. System includes a WiFi router and two satellites.
  • Fast Internet speeds for all devices- The dedicated WiFi connection gives you the fastest and most consistent Internet speeds available, even as more devices connect.
  • Works with your existing Internet Service Provider- Quick & easy setup with the Orbi app so you can get online in minutes.
  • The Orbi app lets you pause the WiFi, see which devices are connected, do a quick speed test, set up Smart Parental Controls, and much more.
  • Ethernet Ports—Four 10/100/1000 Mbps gigabit Ethernet ports (one WAN and three LAN) for the router and four LAN for each satellite.



Model RBK53
WiFi Technology IEEER 802.11a/b/g/n/ac
Speed and range 3Gbps
WiFi Performance Orbi AC3000 Router and AC3000 Satellites (1,733+866+400Mbps)
WiFi Band Tri-band WiFi
Standards Simultaneous Tri-band WiFi
- Radio 1: IEEE® 802.11b/g/n 2.4GHz - 256QAM support
- Radio 2: IEEE® 802.11a/n/ac 5GHz - 256QAM support
- Radio 3: IEEE® 802.11a/n/ac 5GHz - 256QAM support
Beamforming Implicit & Explicit Beamforming for 2.4 & 5GHz bands
MU-MIMO MU-MIMO capable for simultaneous data streaming on multiple devices

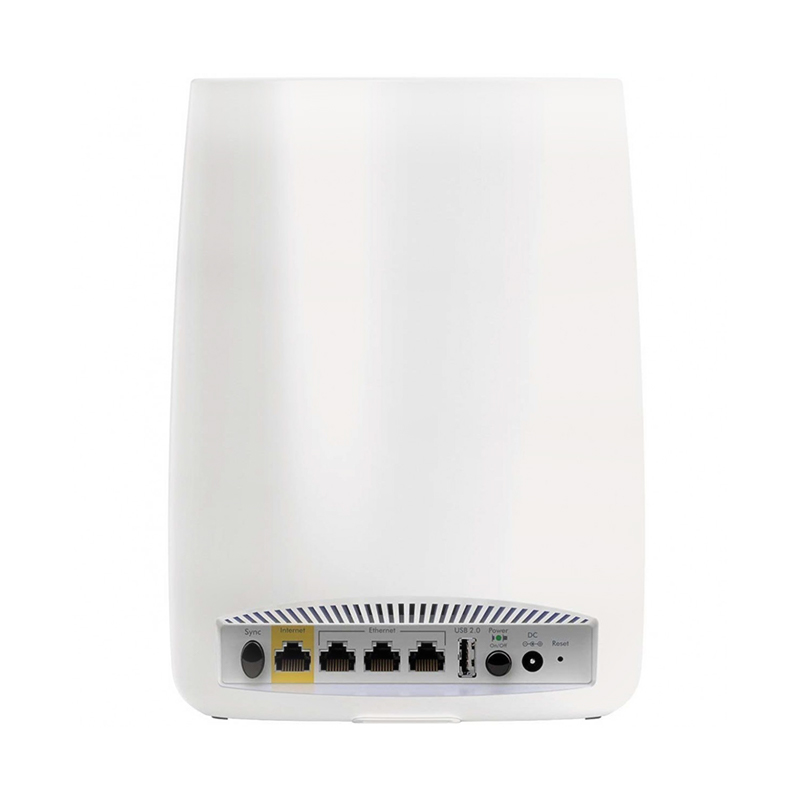

Number of ethernet ports  • Ports – Orbi Router
- 4 *10/100/1000Mbps Gigabit Ethernet ports
- 1WAN & 3LAN
- 2.0 USB port
• Ports – Orbi Satellites (each)
- 4 *10/100/1000Mbps Gigabit Ethernet LAN ports
- 2.0 USB port
Processor Powerful Quad-Core 710MHz processor
Memory 4GB flash and 512MB RAM
Antenna 6 *high performance internal antennas with high powered amplifiers
Button - Power On/Off
- WPS and SYNC
WiFi security - WPA/WPA2-PSK support
- Guest WiFi Network is easy to setup separate & secure Internet access for guests
Parentel Controls Circle® with Disney Smart Parental Controls
Physical Specifications • Orbi Router (RBR50)
  - Dimensions: 6.7 x 3.1 x 8.89 in (170.3 x 78.9 x 225.8 mm)
  - Weight: 1.96lb (890.5g)
• Orbi Satellite (RBS50)
  - Dimensions: 6.7 x 3.1 x 8.89 in (170.3 x 78.9 x 225.8 mm)
  - Weight: 1.96lb (890.5g)
Package Contant - Orbi Router (RBR50)
- 2 *Orbi Satellite (RBS50)
- 6.5ft Ethernet cable
- 3 *12V/3.5A power adapters
- Quick start guide
