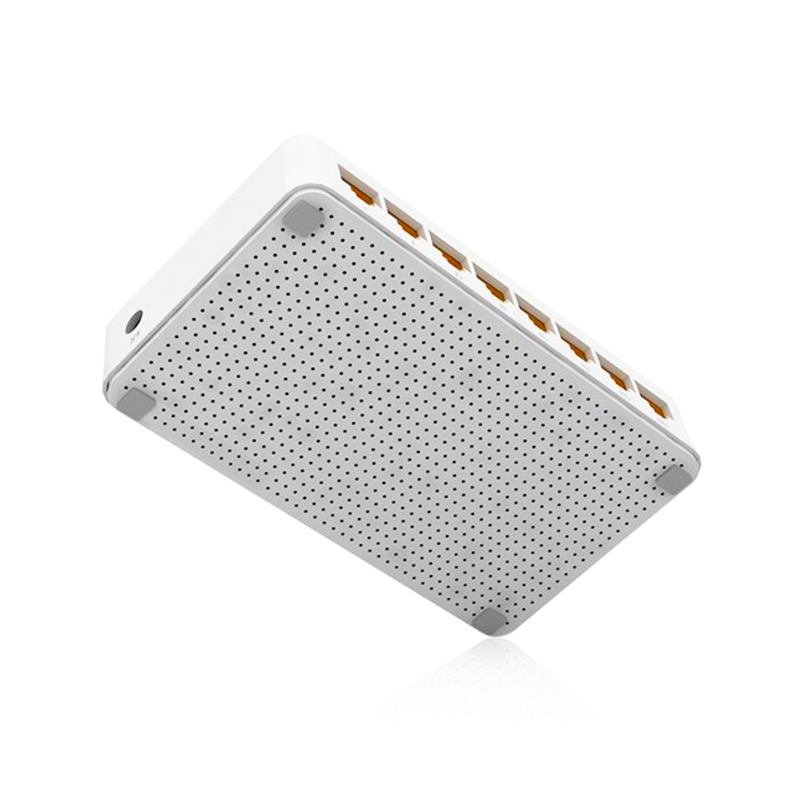

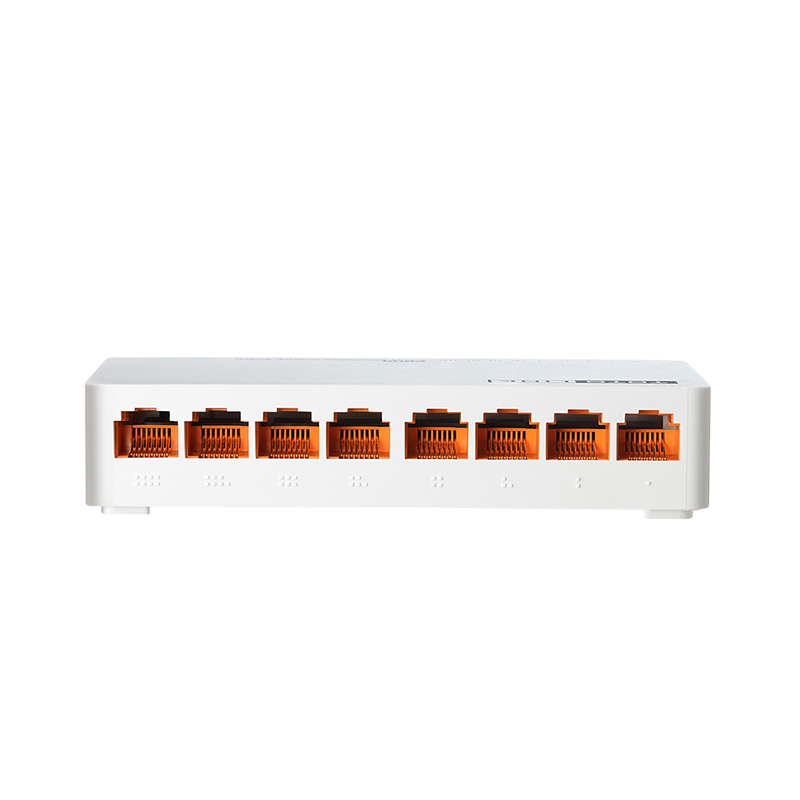

S808
8-Port 10/100Mbps Desktop Switch
- 8 Port 10/100Mbps auto-negotiated RJ45 ports.
- Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode.
- Mini plastic design supports desktop placement or wall mount.
- 1K entry MAC address table and automatic address learning.
- Auto-MDI/MDIX eliminates the need for crossover cables.
- Store- and-Forward switching scheme.
- Performs non-blocking full wired speed.
Spec
| Brand | TOTOLINK |
| Model | S808 |
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, |
| Interface | 8*10/100Mbps auto-negotiation RJ-45 Ports (Auto MDI/MDIX) |
| Power Supply | 5V DC/0.6A |
| Dimensions(L x W x H) | 4.9 x 2.4 x 1.1in. (125 x 62 x 27mm) |
| LED | 1* Power, 8*LANs |
| MAC Address Learning | Auto-learning, auto-aging |
| MAC Address Table | 1K |
| Network Media | - 10BASE-T: UTP Cat 3 or above cable - 100BASE-TX: UTP Cat 5, 5e or above cable |
| Backup Bandwidth | 1.6Gbps |
| Transmission Method | Store-and-forward |
| Package Contents | - 1 *S808 Desktop Switch - 1 *Power Adapter - 1 *Quick Installation Guide |
| Environment | - Operating Temperature: 0℃~40 ℃ (32 ℉~104℉) - Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉) - Operating Humidity: 10%~90% non-condensing - Storage Humidity: 5%~90% non-condensing |
