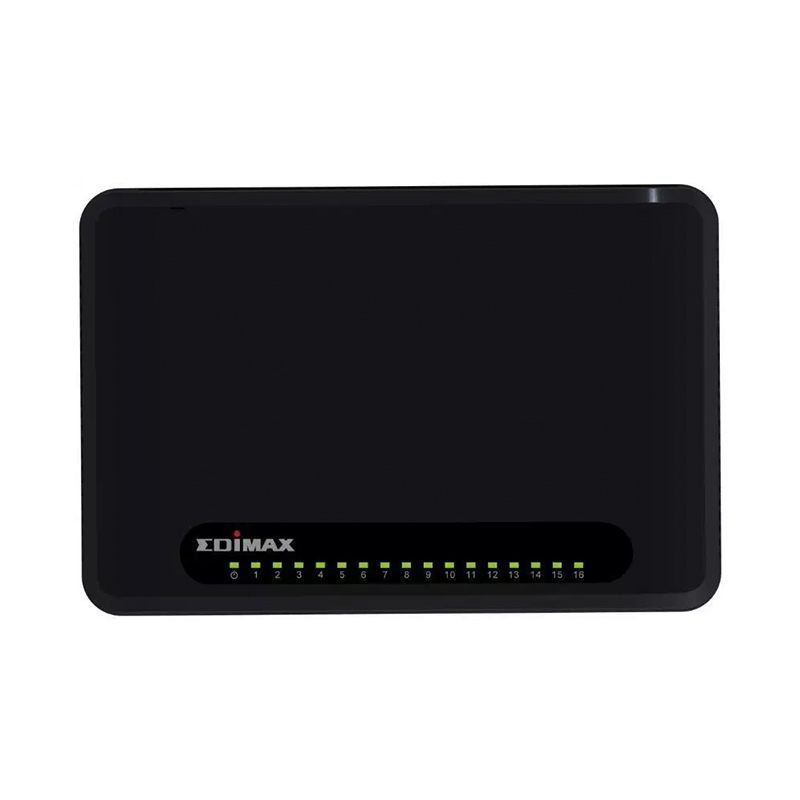

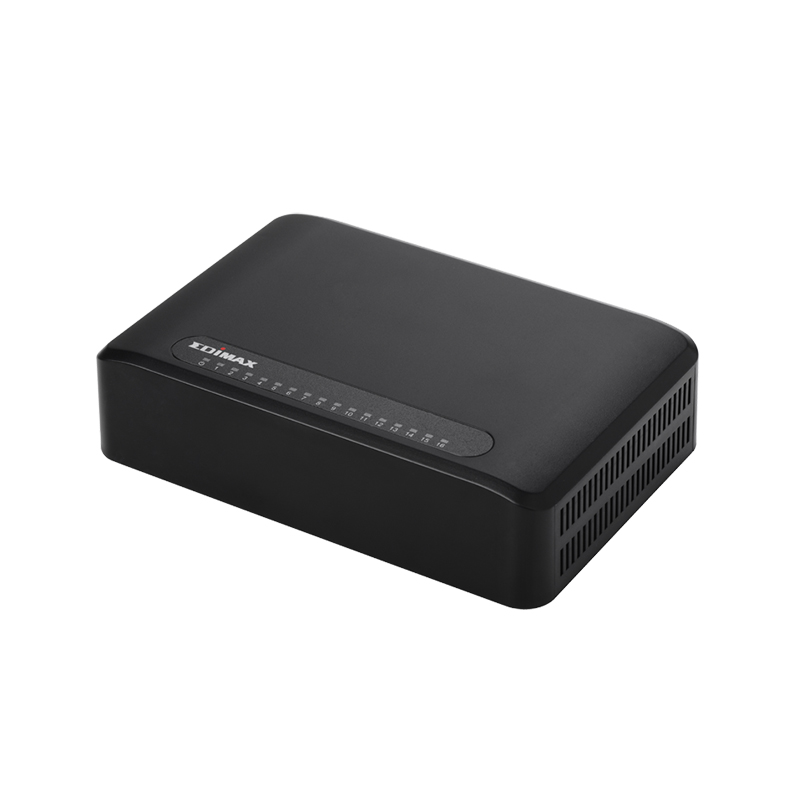

ES-3316P

16 Port Fast Ethernet Switch

  • Complies with IEEE802.3, IEEE802.3u standards
  • Supports auto MDI/MDI-X crossover detecting and auto correction
  • Supports IEEE802.3X flow control for full duplex and back pressure flow control for half duplex
  • Wire speed packet filtering and forwarding rate
  • Store and forward architecture filters fragment & CRC error packets
  • Supports IEEE802.3az energy efficient Ethernet

Power Saving: Reduce power use by over 70%


The ES-3316P is an energy saving network switch with sixteen integrated 10/100Mbps Fast Ethernet ports. The power saving function saves resources and is light on the pocket, meaning the ES-3316P is an ideal solution for homes and small businesses.

200Mbps Full Duplex Transmission
The ES-3316P complies with IEEE 802.3/IEEE 802.3u 10/100Mbps Ethernet standard and also supports IEEE 802.3x full duplex transmission. The full duplex feature can double the network throughput on every port and is used for high speed server or switch-to-switch connections. The ES-3316P boasts a maximum throughput of 200Mbps for every port.

Supports Wire Speed and Flow Control
The ES-3316P’s built-in non-blocking and store-and-forward architecture equips your network with full-wire speed connections. It accommodates flow control for full duplex mode and back pressure for half-duplex mode; ensuring reliable data transfer and preventing data loss. Use the ES-3316P to create high-speed networks and benefit from exceptional performance and reliability.

Supports Auto-MDI/MDI-X and Auto Sensing
The ES-3316P supports PnP (plug and play) installation and auto-MDI/MDI-X, meaning you can connect to computers or Ethernet devices without configuration hassles.  For your convenience you can use either straight-through or cross-over Ethernet cables and connect both 10 and 100Mbps devices to the ES-3316P. The switch intelligently detects the correct cable and speed for your device.

IEEE Energy Efficient Ethernet (EEE)
The ES-3316P offers environmental efficiency together with Fast Ethernet speeds which are critical for next-generation network applications. To comply with the IEEE802.3az standard, the ES-3316P provides power saving functions to reduce costs and energy consumption.

*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors. Product specifications and design are subject to change without notice.


*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.

Spec


 Standards
 Features
 Filtering / Forwarding Rates
•IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3x Flow Control
IEEE 802.3az Energy Efficient Ethernet
RJ-45 Port:16
MAC Address: 8K
Buffer Memory: 256K
Transmission Method: Store and Forward
100Mbps Port – 148,800pps
10Mbps Port – 14,880pps


 Transmission Media
 LED Indicators
 Power Requirement
10BASE-T Cat. 3, 4, 5 UTP/STP
100BASE-TX Cat. 5 UTP/STP
Per Port: Link/Act
Per Unit: Power
DC 5V 1A
 Power Consumption
 Dimensions
 Weight
1.72Watts (Max)
160× 107 × 40mm (L x W x H)
0.215 kg
 Temperature
 Humidity
Certifications
Operating: 0 to 40
