WAP1200

2 x 2 AC Dual-Band Wall-Mount PoE Access Point


Powerful 2.4GHz & 5GHz Dual-Band SMB Solution
  • 802.11AC Dual-Band High Speed
  • Easy Installation
  • Designed for High Density Usage
  • Multiple SSIDs for Security Management
  • Fast Roaming
  • Wide Coverage & High Sensitivity
  • Seamless Mobility
  • Power over Ethernet
  • Built-In RADIUS Server
  • Business Environments
  • Central Management
  • Optional Security Cove

Powerful 2.4GHz & 5GHz Dual-Band SMB Solution

​The WAP1200 is high-speed, robust wireless solution designed to meet the needs of modern SMBs with the latest IEEE 802.11ac technology for wireless speeds up to 1200Mbps. A wall-mounted design, industrial-grade performance and build quality combined with user-friendly operation, 11ac speeds and an extensive feature set make an ideal dual-band solution for day-to-day enterprise operations.

For businesses that demand security, flexibility and speed – the Edimax Pro series has a wide range of potential applications from office environments to schools, campuses, hotels and hospitals. Multiple SSIDs can be configured for different departments or user groups and a built-in RADIUS server provides additional verification with a scalable AP array architecture for central management of multiple access points. High-density capacity for up to 100 simultaneous users is ideal for BYOD workplaces or other environments with a high volume of users and wireless devices, and fast roaming allows for seamless transitions between multiple access points. Power over Ethernet support (PoE) and an intuitive web-based management interface provide deployment flexibility and extensive management options for company MIS departments and network administrators. An optional security cover also prevents physical theft or tampering, along with a rogue AP detection function to safeguard your network from unauthorized access.

When performance and security are critical for your business, you need products that are engineered for your industry. The Edimax Pro series is designed to help your business and provide the connectivity that you rely on every day, with safety and effectiveness guaranteed.


KEY FEATURES


  • 802.11AC Dual-Band High Speed: IEEE 802.11ac concurrent dual-band  with 1200Mbps wireless speed.
  • Easy Installation: Wall-mount design with easy installation kit.
  • Designed for High Density Usage: Supports up to a hundred users simultaneously, ideal for crowded environments and BYOD (Bring Your Own Device) workplaces.
  • Multiple SSIDs for Security Management: Supports up to 32 SSIDs (16 x 2.4GHz & 16 x 5GHz) ideal for multiple departments, user groups, customers or guests.
  • Fast Roaming: Roams smoothly between APs without lag or interruption, ensuring top performance for video and voice streaming applications.
  • Wide Coverage & High Sensitivity: Adjustable RF output power and high receiver sensitivity for wide coverage across large spaces.
  • Seamless Mobility: 1.5x greater coverage than typical APs for blanket coverage to ensure seamless connectivity for Wi-Fi devices across enterprise environments.
  • Power over Ethernet: Supports IEEE 802.3at PoE and included power adapter.
  • Built-In RADIUS Server: With management for up to 256 user accounts.
  • Business Environments: Advanced choice for SMBs. Suitable for a wide range of commercial applications such as offices, hotels, meeting rooms, schools, campuses, resorts, retail and others.
  • Central Management: Edimax Pro Network Management Suite (NMS) and SKYMANAGE PC for easy and Intuitive web-based central management. AP built-in with NMS supports AP array architecture.
  • Optional Security Cover: Prevents theft and tampering.

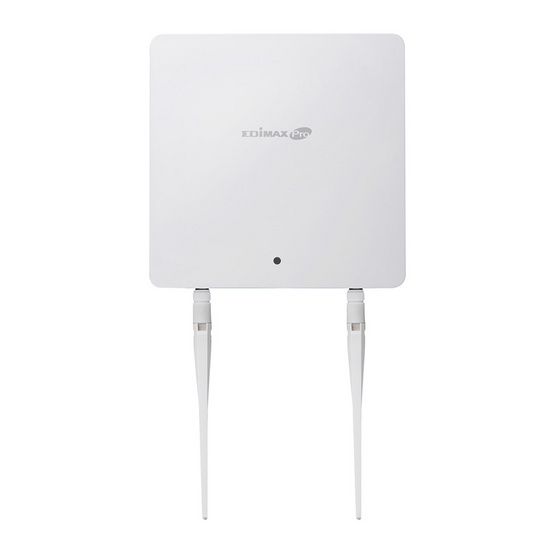

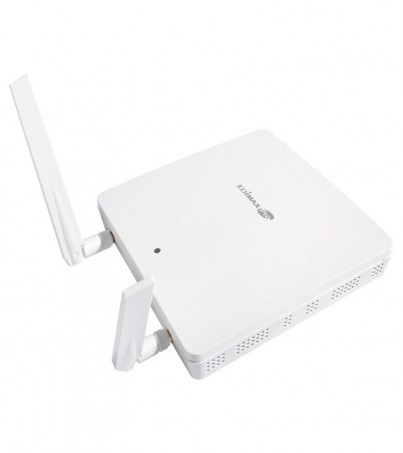

Edimax WAP1200 2 x 2 AC Dual-Band Wall-Mount PoE Access Point




High Performance Design with High-Speed 1200Mbps Dual-Band 11ac
State-of-the-art IEEE 802.11ac wireless technology delivers the Giga-fast  Wi-Fi speeds that today’s fast-moving modern business environments demand. And simultaneous 2.4GHz & 5GHz dual-band coverage means maximum flexibility for mobile-centric business productivity applications. Speeds up to 300Mbps on the 2.4GHz band and 867Mbps on the 5GHz band can handle even the most bandwidth intensive tasks, perfect for audio, video and voice applications and significantly faster than traditional 802.11n Wi-Fi. Additionally Edimax Pro series products feature other high-performance design features such as solid capacitors for significantly longer lifespans than traditional non-solid alternatives, generating less heat and delivering increased stability. Durable, robust and ready for business environments.​



Wide Coverage & Multiple SSIDs
With adjustable RF output power and high receiver sensitivity, Edimax Pro access points are equipped to provide wide coverage where it’s needed the most. Suitable for large spaces across office floors, shop floors, hospital wards, or conference rooms, get the wireless coverage that staff and systems need to operate efficiently. Keep every corner of your business connected and differentiate user groups, departments or guests with up to 32 separate SSIDs with independent security. Wide, accessible Wi-Fi coverage with strong security to protect sensitive company information and supervise access to internal networks.



BYOD Solutions & High Density Networking
Bring Your Own Device (BYOD) is becoming an increasingly commonplace company trend in offices and enterprise environments worldwide. Employees are using their own smartphones, tablets and laptops with the latest cloud-connected productivity apps to get things done, and traditional 2.4GHz is crowded, so most of these devices need or support high-speed 5GHz Wi-Fi. And in offices, hotels, schools or other densely populated environments, access points need to cope with a high volume of users connecting to the network at any time, whether it’s customers or employees. Edimax Pro solutions support the latest 802.11ac 2.4GHz & 5GHz dual-band Wi-Fi along with high-density capacity to support up to a hundred users simultaneously, ideal for BYOD workplaces and a large number of wireless devices.



Seamless Mobility
Typical wireless access points can effectively cover a 25m – 30m radius under normal usage. Now with the technological advances in Edimax Pro access points, we can extend effective coverage approximately 1.5x further, eliminating Wi-Fi dead zones completely and providing blanket coverage across enterprise environments. Wireless devices can stay seamlessly connected in environments where connectivity may be a critical component of efficiency and productivity, and benefit from mobility with high-speed connectivity across a range of wireless devices: smartphones, tablets and computers, throughout an entire organization.



Hotels, Offices, Schools and Hospitals
Edimax Pro series access points, with high-speed 11ac high-density networking for up to 100 simultaneous users, are ideal for multi-tenant unit buildings, hotels, resorts, hospitals, campuses, conventions or anywhere with large-scale network use, with safety and effectiveness guaranteed.



Rogue AP Detection & Wireless Isolation
Rogue access point detection can identify any unauthorized SSIDs which may have been installed in an otherwise secure network with malicious intent, and L2 wireless isolation provides wireless security.



Easy and Intuitive Central Network Management: NMS & SKYMANAGE PC
Work with Edimax Pro NMS (Network Management Suite)* and SKYMANGE PC* web-based wireless network management software. Company MIS administrators can plan and manage Edimax Pro access points’ powerful functionality according to their office space using an easy, remote web-based interface which includes a dashboard, map view, traffic statistics and wireless client list for network-wide remote administration. RADIUS settings, WLAN group settings, access control, guest network settings and firmware upgrades can all be managed centrally from a single location to reduce network downtime, aid troubleshooting and optimize network performance. Graphical zone plans with Google Maps integration and setup wizards are also available for expanding and managing large networks with multiple access points, with custom floor plans, visual overviews and easy drag-and-drop icons for quick access to key performance and monitoring information.



Edimax Pro IAP1200 2 x 2 AC1200 Dual-Band In-Wall PoE Access Point, Edimax Pro central Network Management Suite (NMS)   Edimax Pro IAP1200 2 x 2 AC1200 Dual-Band In-Wall PoE Access Point, Edimax Pro central Network Management Suite (NMS)

*NMS is built-in with Edimax Pro CAP, WAP series & OAP1750 access point.  For<

Spec


SPECIFICATIONS


HARDWARE
LAN Interface Giga x 2
PoE 802.3at (in)
Antenna Type: 2 x External
Gain: 2dBi (2.4GHz), 2dBi (5GHz)
Power DC: 12V / 2.5A
802.3af
Dimensions(L x W x H) 18.3 x 18.3 x 3.6 cm
Weight 527g
Power Consumption (Full Loading) 12W
Mounting Wall / Desktop
WPS/Reset Y
LED Indicator 1. Power LED
2. Diag LED
Environmental Conditions Operating Temperature: 0°C (32°F) to 50°C (122°F)
Storage Temperature: -20°C (-4°F) to 60°C (140°F)
Operating Humidity: 90% or Less
Storage Humidity: 90% or Less
Power Saving 802.3az
Internal Buzzer Y
Security Cover Y (Optional)
WIRELESS
