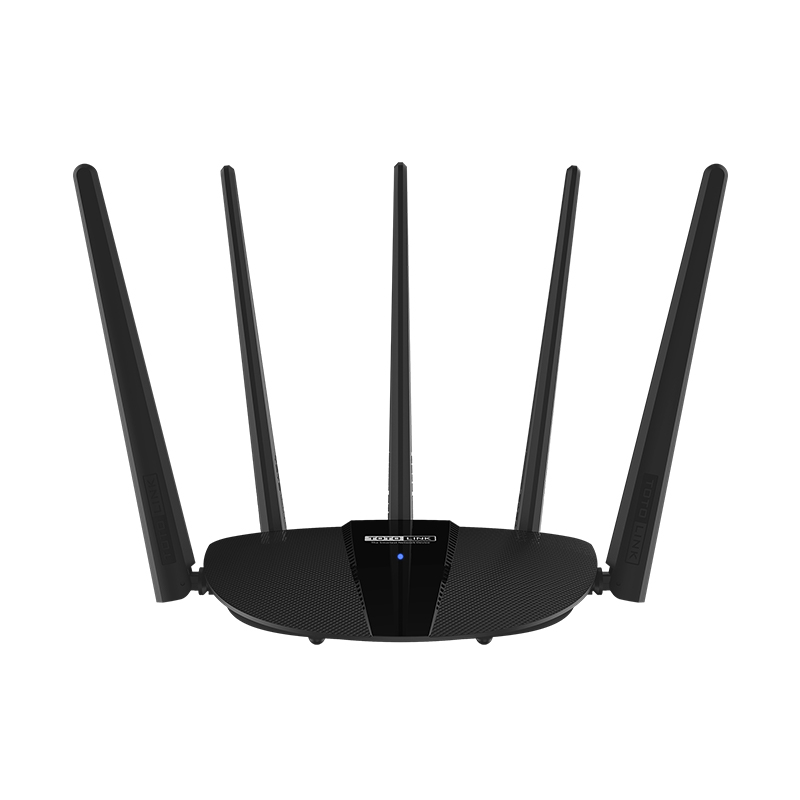

A3100R

AC1200 Wireless Dual Band Gigabit Router

  • Complies with the IEEE 802.11ac Wave 2 Wi-Fi standard.
  • Simultaneous 867Mbps on 5GHz and 300Mbps on 2.4GHz for a total of 1167Mbps.
  • Middle power design on both bands is perfect for long-distance wireless transmission.
  • MU-MIMO technology allows to transfer data to multiple devices at the same time.
  • Beamforming technology improves directional signal transmission or reception, and reduces interferences.
  • Three Gigabit ports ensure high-speed Internet access and wired speed.
  • Supports DHCP, Static IP, PPPoE, PPTP and L2TP broadband functions.
  • Provides 64/128-bit WEP, WPA, and WPA2.
  • Connects to a secure network easily and fast using WPS.
  • QoS: Bandwidth Control based on IP address.
  • Supports IP/Port filtering, MAC filtering, URL filtering and Port Forwarding.
  • Universal Repeater and WDS function for easy Wi-Fi extension.
  • Multi-SSID function enables users to create multiple Wi-Fi networks.

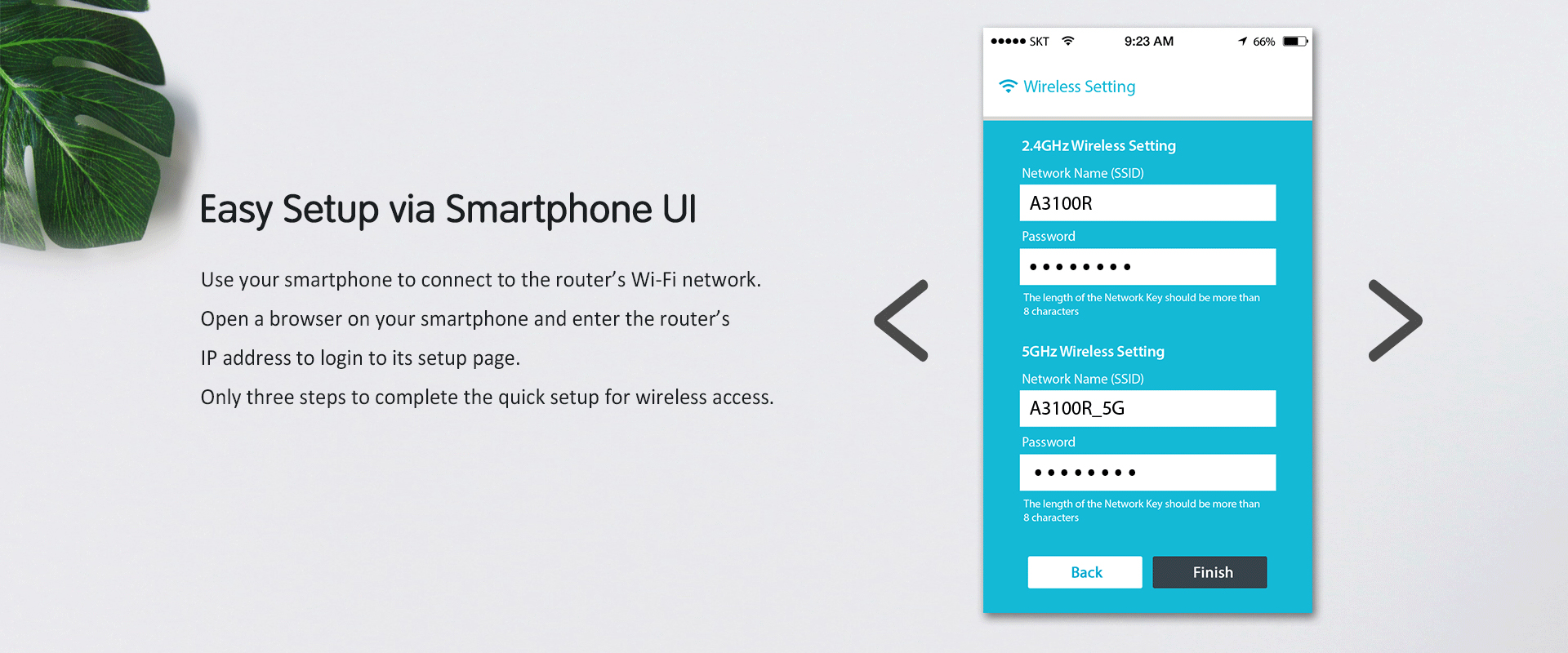

  • Easy setup with smartphone UI simplifies the basic settings.

Spec



Brand TOTOLINK
Model A3100R
Standards  IEEE 802.11ac n/g/b/a
Frequency Range 2.4GHz/5GHz
WiFi Speed AC1200
Data Rate  - 2.4GHz: Up to 300Mbps
- 5GHz: Up to 867Mbps
EIRP  - 2.4GHz < 20dBm
- 5GHz < 20dBm
Reception Sensitivity  - 2.4G: 11b 11M：-81dBm@8% PER
            11g 54M：-68dBm@10% PER
            11n HT20 MCS7：-65dBm@10% PER
                   HT40 MCS7：-62dBm@10% PER

- 5G: 11a 54M：-68dBm@10% PER
         11ac: HT20<-65dbm
                   HT40 MCS7：-62dBm@10% PER
         11ac VHT80 MCS9：-51dBm@10% PER

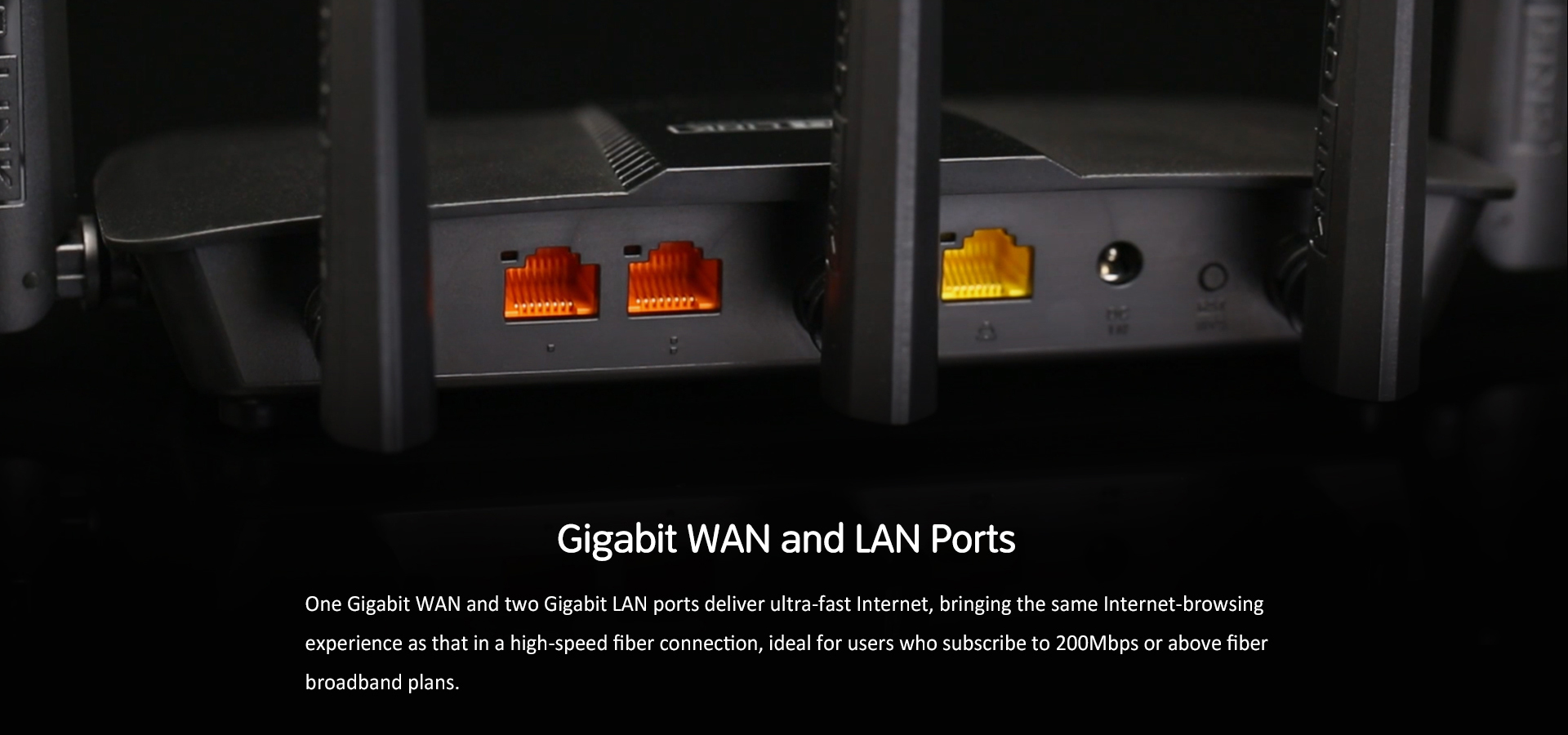

Interface - 2 *1000Mbps LAN Ports
- 1 *1000Mbps WAN Port

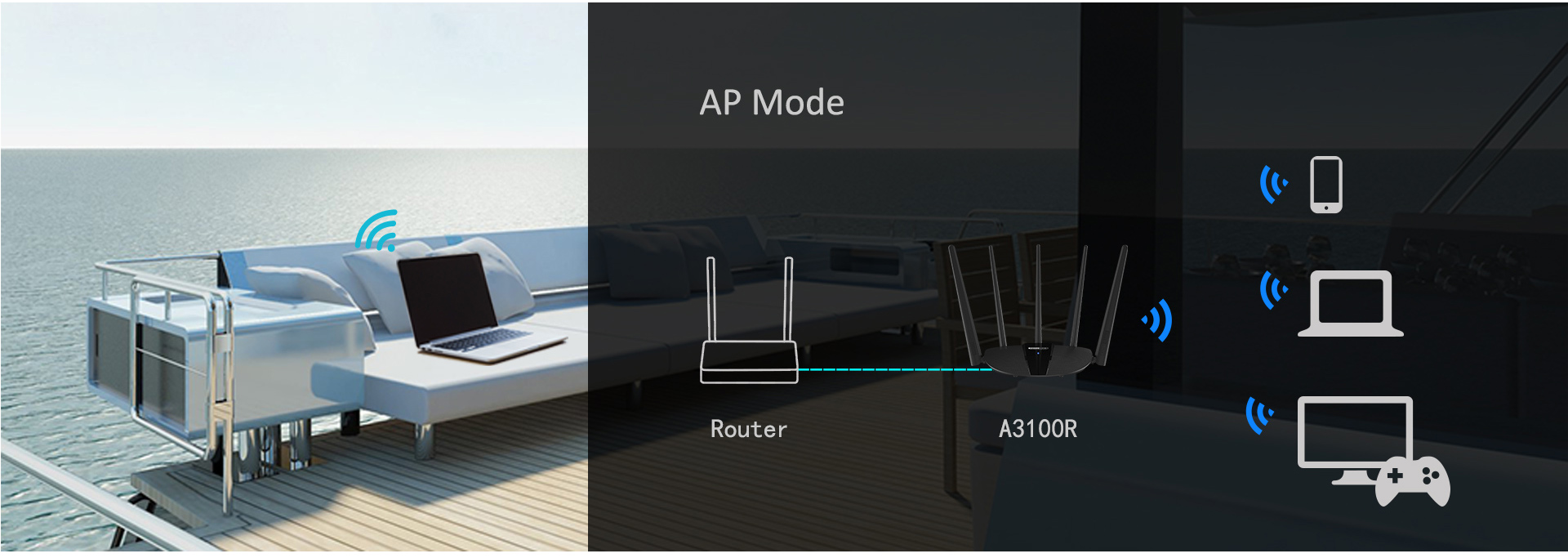

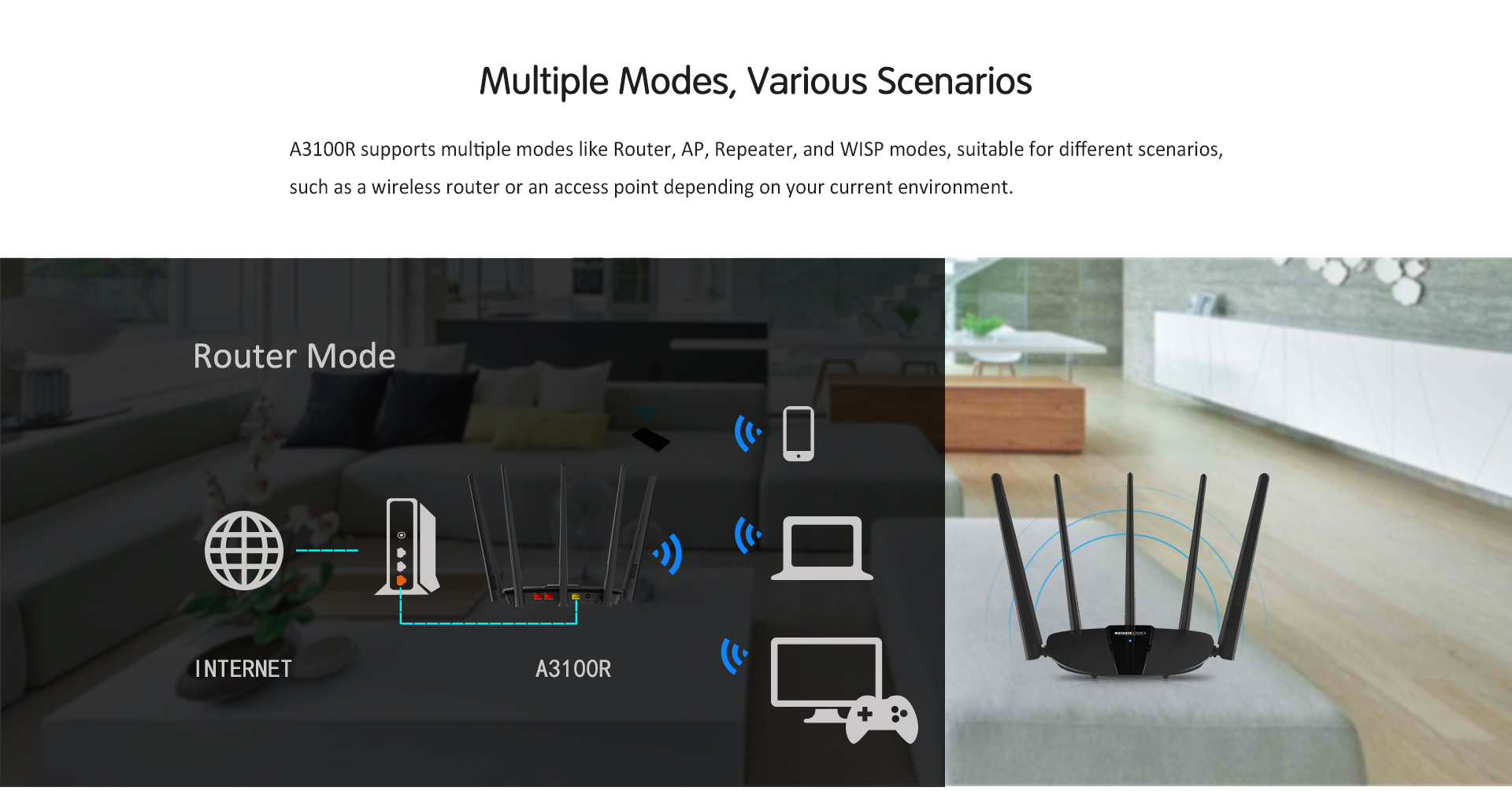

Operation Mode  - Gateway Mode
- Bridge Mode
- Repeater Mode

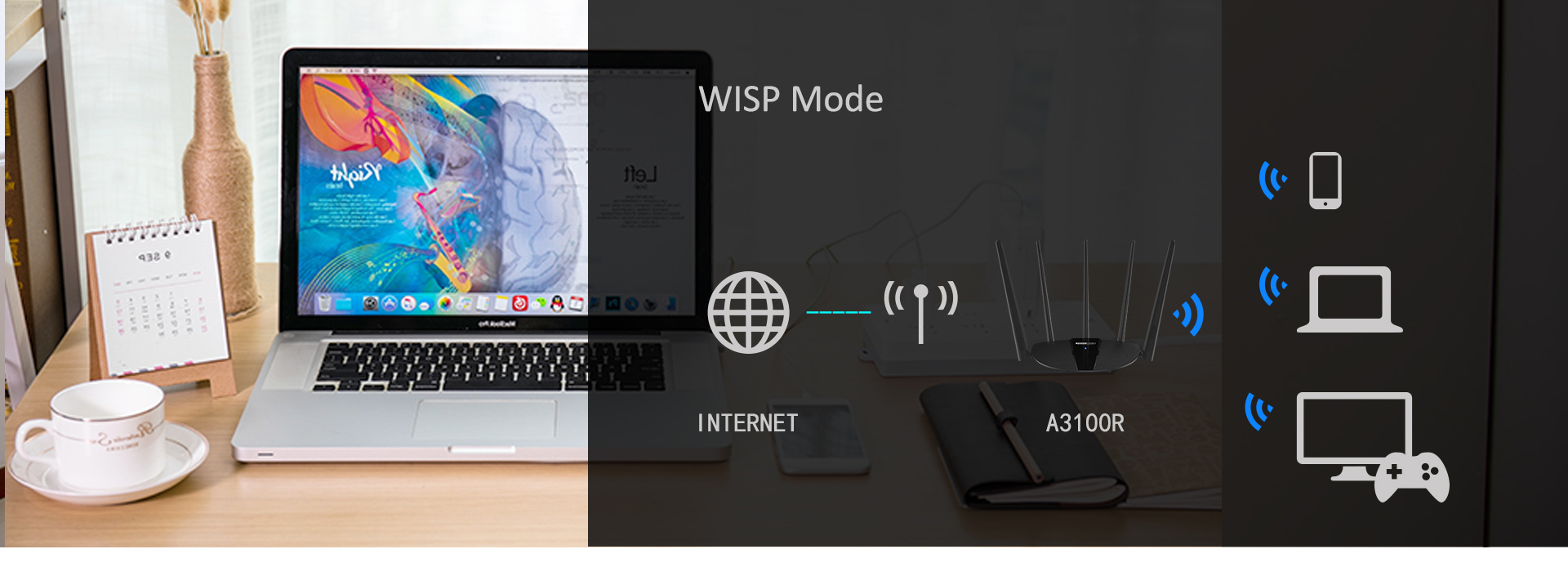

- WISP Mode
Wireless Security 64/128-bit WEP, WPA and WPA2
Wireless Mode Multiple SSIDs, MAC Authentication, WDS, WPS, IPV6,IPTV

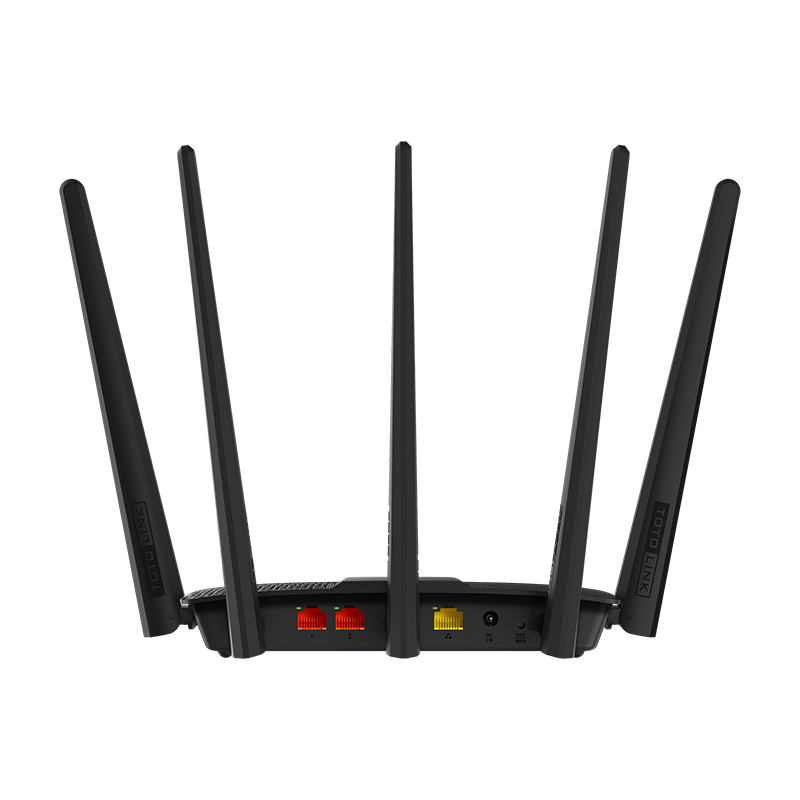

Antenna 3 *5dBi fixed antennas (2.4G),2 *5dBi fixed antennas (5G)
Dimensions 7.5 x 5.2 x 1.4 in. ( 190 x 131 x 36mm)
Power Supply Unit 9V DC / 0.8A
LEDs 1 * SYSTEM
Firewall MAC Filtering, IP Filtering, Port Filtering, URL Filtering Port Forwarding, DMZ
Management QoS, DDNS, Remote management, etc
Package Contents - 1 *A3100R Wireless Router
- 1 *Power Adapter
- 1 *Ethernet Cable
- 1 *Quick Installation Guide
