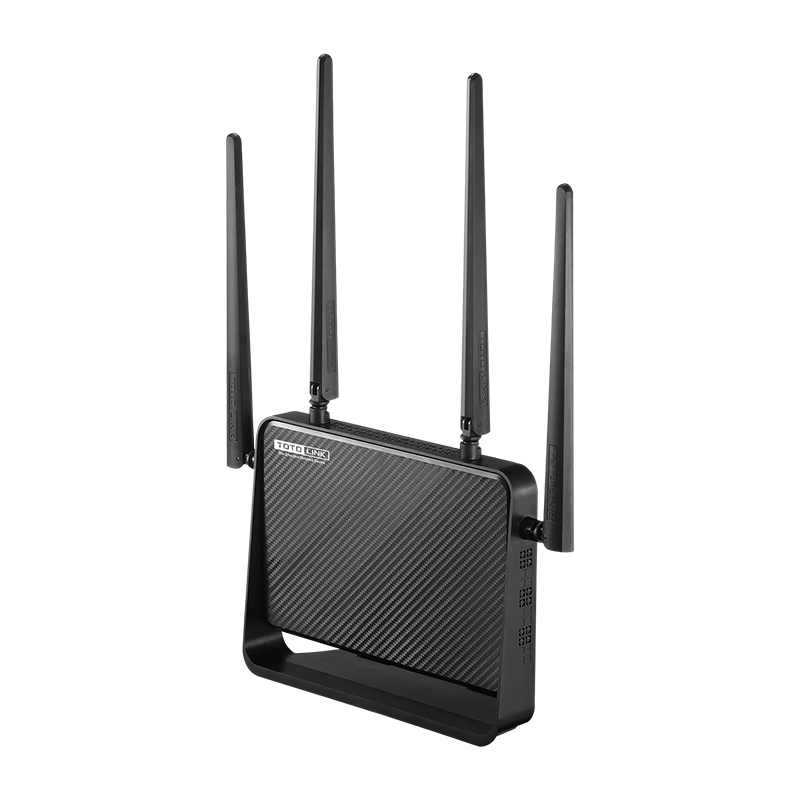

A950RG
AC1200 Wireless Dual Band Gigabit Router
- Complies with the next generation IEEE 802.11ac Wi-Fi standard.
- 867Mbps on 5GHz and 300Mbps on 2.4GHz band for total 1167Mbps simultaneously.
- Middle power design on both bands is perfect for long distance wireless transmission.
- MU-MIMO technology allows data transfer to multiple devices at the same time.
- Gigabit WAN ensures high speed Internet access and Wi-Fi speed.
- Supports DHCP, Static IP, PPPoE, PPTP and L2TP broadband functions.
- Provides 64/128-bit WEP, WPA, WPA2 and WPA/WPA2 (TKIP+AES) security.
- Connects to secure network easily and fast using WPS.
- QoS: Bandwidth Control based on IP.
- Supports IP, MAC, URL filtering and Port Forwarding.
- Universal Repeater and WDS function for easy Wi-Fi extension.
- Multi-SSID function enables users to create multiple Wi-Fi networks.
- Supports easy and fast IPTV settings.
Spec
| Brand | TOTOLINK |
| Model | A950RG |
| Standards | IEEE 802.11ac n/g/b/a |
| Frequency Range | 2.4GHz/5GHz |
| WiFi Speed | AC1200 |
| Data Rate | - 2.4GHz: Up to 300Mbps - 5GHz: Up to 867Mbps |
| EIRP | - 2.4GHz < 22dBm - 5GHz < 20dBm |
| Reception Sensitivity | - 2.4G: 11b 11M: 20±1.5dBm 11g 54M: 17±1.5dBm 11n HT20: 16±1.5dBm HT40: 16±1.5dBm - 5G: 11a 54M: 18±2dBm 11n HT20 MCS7: 17±2dBm HT40 MCS7: 17±2dBm 11ac VHT80 MCS9: 16±2dBm |

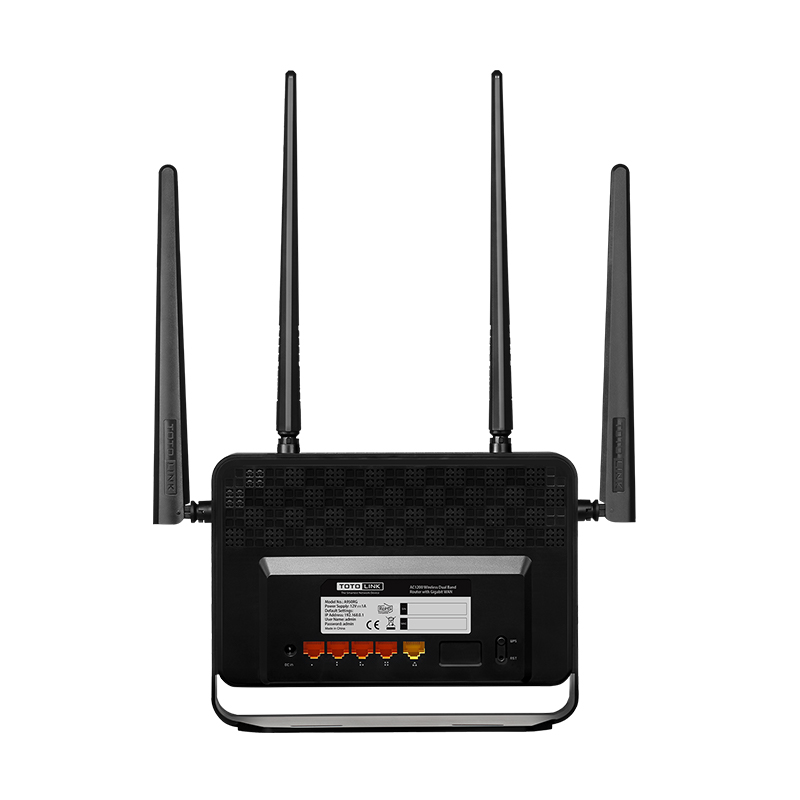

| Interface | - 4 *100Mbps LAN Ports - 1 *1000Mbps WAN Port |
| Operation Mode | - Gateway Mode - Repeater Mode - Bridge Mode - WISP Mode |
| Wireless Security | 64/128-bit WEP, WPA, WPA2 and WPA-Mixed |
| Wireless Mode | Multiple SSID, MAC Authentication, Universal Repeater, WDS, WPS |
| Antenna | 2 *5dBi fixed antennas (2.4G),2 *5dBi fixed antennas (5G) |
| Button | 1 *WPS/RST Button |
| Dimensions | 8.2 x 6.2 x 2.6 in.( 210 x 160 x 66mm) |
| Power Supply Unit | 12V DC / 1A |
| LEDs | *Power, 1 *CPU, 1 *5G Wireless, 1 *2.4G Wireless, 4 *LAN, 1 *WAN |
| Firewall | MAC Filtering, IP Filtering, Port Filtering, URL Filtering Port Forwarding, DMZ |
| Management | QoS, DDNS, DoS, WMM, Access Control, etc. |
| Package Contents | - 1 *A950RG Wireless Router - 1 *Power Adapter - 1 *Ethernet Cable - 1 *Quick Installation Guide |
