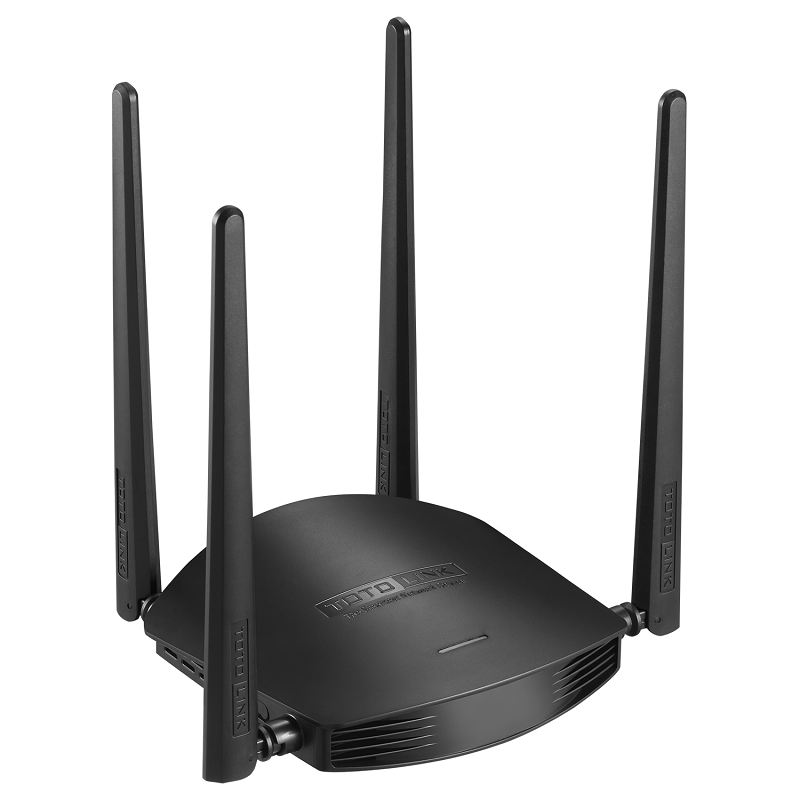

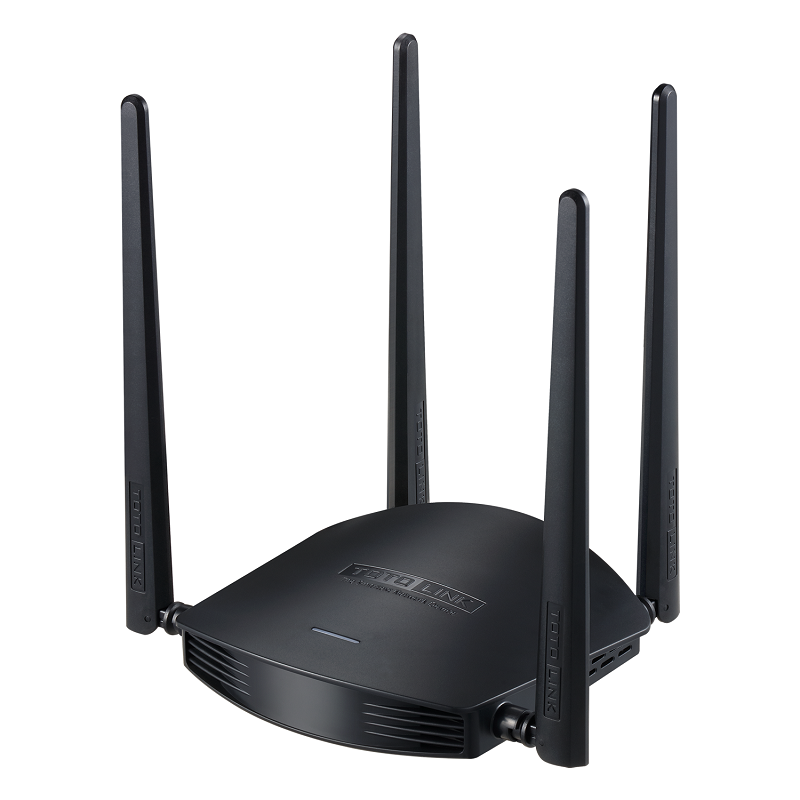

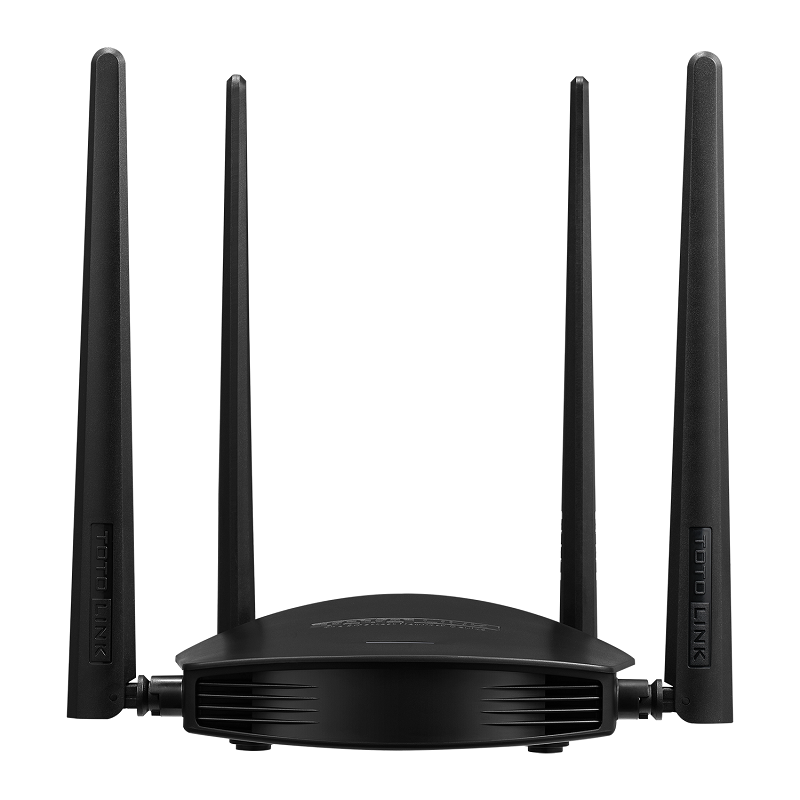

A800R
AC1200 Wireless Dual Band Router with Fast Ethernet Ports and MU-MIMO Technology
- Complies with the next generation IEEE 802.11ac Wi-Fi standard.
- 867Mbps on 5GHz and 300Mbps on 2.4GHz band for total 1167Mbps simultaneously.
- Middle power design on 5G bands is perfect for long distance wireless transmission.
- MU-MIMO technology allows data transfer to multiple devices at the same time.
- 1GHz CPU improves Wi-Fi transfer efficiency.
- Supports DHCP, Static IP, PPPoE, PPTP and L2TP broadband functions.
- Provides 64/128-bit WEP, WPA, WPA2 and WPA/WPA2 (TKIP+AES) security.
- Connects to secure network easily and fast using WPS.
- QoS: Bandwidth Control based on IP.
- Supports IP, MAC, URL filtering and Port Forwarding.
- Universal Repeater and WDS function for easy Wi-Fi extension.
- Multi-SSID function enables users to create multiple Wi-Fi networks.
- One-page Easy Setup simplifies the basic settings.
Spec
| Brand | TOTOLINK |
| Model | A800R |
| Standards | IEEE 802.11ac n/g/b/a |
| Frequency Range | 2.4GHz/5GHz (Dual-Band) |
| WiFi Speed | AC1200 |
| Data Rate | - 2.4GHz : Up to 300Mbps - 5GHz : Up to 867Mbps |
| EIRP | - 2.4GHz < 22dBm - 5GHz < 20dBm |
| Reception Sensitivity | - 2.4G: 11b 11M: 20±1.5dBm 11g 54M: 17±1.5dBm 11n HT20: 16±1.5dBm HT40: 16±1.5dBm - 5G: 11a 54M: 18±2dBm 11ac VHT80 MCS9: 16±2dBm |

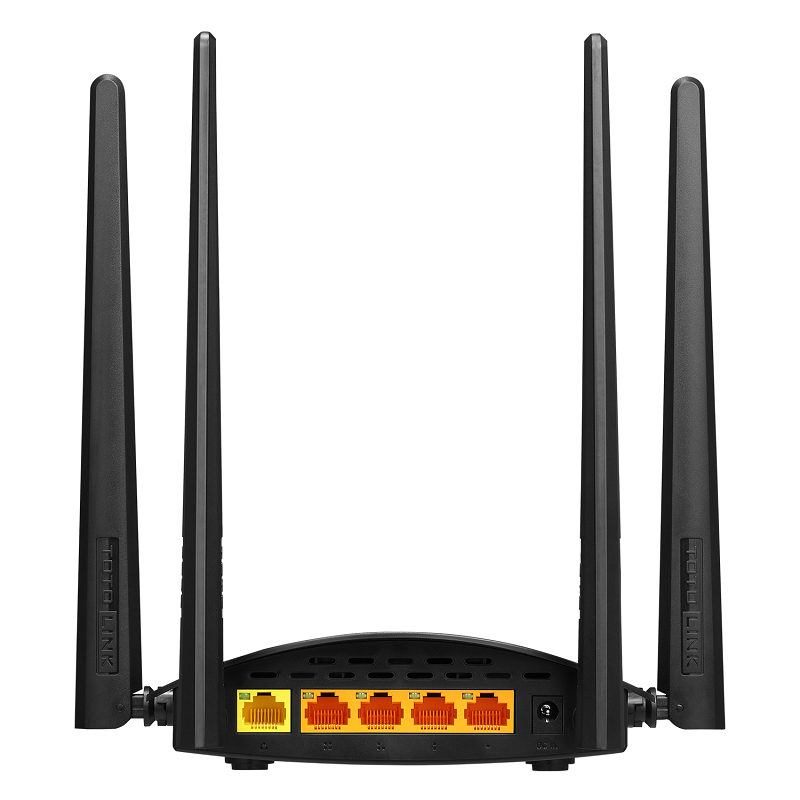

| Interface | - 4 *100Mbps LAN Ports - 1 *100Mbps WAN Port |
| Operation Mode | - Wireless ISP Client Router - Repeater (Range Extender) - Router - Bridge with AP |
| Wireless Security | 64/128-bit WEP, WPA, WPA2 and WPA-Mixed |
| Wireless Mode | Multiple SSID, MAC Authentication, Universal Repeater, WDS, WPS, IPTV, IPV6 |
| Antennas | 4 *5dBi fixed antennas |
| Dimensions | 6.7 x 5.4 x 1.6 in. (170.2 x 138.0 x 40.6 mm) |
| Power Supply | 9V DC / 0.8A |
| LEDS | 1 *Status, 4 *LAN, 1 *WAN |
| Firewall | MAC Filtering, IP Filtering, Port Filtering, URL Filtering Port Forwarding, DMZ |
| Management | QoS, DDNS, DoS, WMM, Access Control, etc. |
| Package Contents | - 1 *A800R Wireless Router - 1 *Power Adapter - 1 *Ethernet Cable - 1 *Quick Installation Guide |
