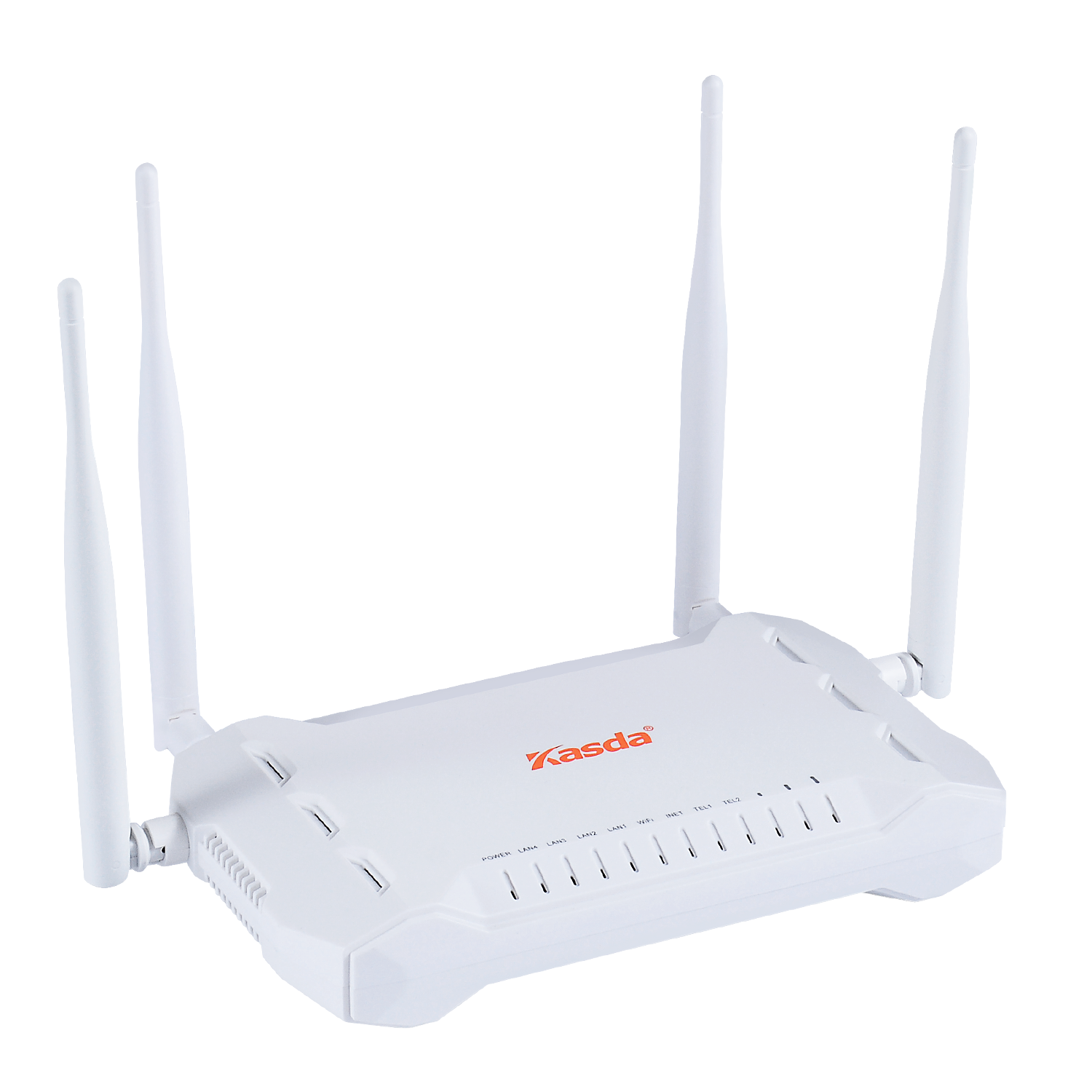

KW9621S
AC 1200 Wireless Dual Band 4G LTE Router
 |
Dual Band - Delivers faster speed Wi-Fi with less interference for maximum throughput |  |
Wi-Fi Speeds - 802.11n 300Mbps and 802.11ac 900Mbps |
 |
4G LTE Technology - LTE Uplink up to 50Mbps and downlink up to 150Mbps |  |
Ethernet Port - 4 Fast Ethernet ports for wired LAN WANconnection |
 |
USB - USB 2.0 port for printer and storage sharing |  |
WPS Security - Offers one button security |
 |
IPv6 - Support next generation |  |
QoS - Network priority can be determined |
 |
Advance security - WPA/WPA2 encryption keep your network safely connected |
|
General Applicability Compatible with Various System –work with all current operating system like Windows10/8/7/vista/XP, Mac OS, Android, iOS, and network terminal equipment like Desktop, laptop, iPad. Mobile etc |
 |
 |
Ease of Use No Configuration –Simply insert the SIM card into the SIM slot and turn on the router Fast Encryption – Easily setup a WPA encrypted secure connection at a push of the WPS button Simple Power Switch– Power ON/OFF buttonprovide convenient power saving Easy ResetButton – Never worry that you lost the login account |
| Security
Secured Wi-Fi Encryption–WPA-PSK/WPA2- PSK encryptions provide active defense against security threats for user networks Guest Network–Create a completely separate Wi-Fi network for your guests’ devices, ensuring they do not have access to your home network. |
 |
Spec
| Product Number | KW9621S |
| Product Picture |  |
| WiFi Standard | IEEE 802.11ac/a 5GHz, IEEE 802.11b/g/n 2.4GHz |
| WiFi performance | 1200Mbps |
| WiFi Range | Big house |
| WiFi Band | 2.4GHz, 5GHz |
| Number of Ethernet Ports | 3*10/100Mbps LAN port 1*10/100Mbps WAN port |
| Number of other ports | 1*USB 2.0 port 2*FXS port 1*SIM slot |
| Key Features | LTE Uplink up to 50Mbps and downlink up to 150Mbps |
|
Static Route, Dynamic RIPv1, RIPv2 support |
|
| External Four 5dBi antennas | |
| Support IPv4/IPv6 Dual Stack | |
| MTU Adjustment | |
|
Network Address Translation (NAT) |
|
|
Port Forwarding |
|
| DHCP Server/Relay/client | |
| DNS Relay Agent/DDNS Support | |
| IGMP snooping v1/2 and IGMP Multicast | |
| NAT Application Level Gateway for popular applications | |
| VOIP Features |
Call Waiting/Forwarding/Transferring/Block/Barring |
| Anonymous Calling /Call Blocking | |
| Three Way Conference | |
| DND (Do Not Disturb)/CNG (Comfort Noise Generation)/DTMF Detection and Generation/Silence Suppression | |
| SIP (RFC 3261)/SDP (RFC 2327)/RTP (RFC 1889)/RTCP (RFC 1890) | |
| Codec: G.711, G.723.1, G.726, G.729.A, G.722, G.722.2 | |
| Echo Cancellation: G.168 | |
|
VAD (Voice Activity Detection) |
|
| Multiple SIP | |
| T.38 Fax Relay | |
| Management Support | Remote Access Control |
| FTP/ HTTP/ Telnet/ TR069 | |
| Command Line Interface via serial interface | |
| Diagnostic Test | |
| Firmware upgrade-able | |
| Bands | Customized according to demands |
| Customized according to demands | |
| Security | Parental control |
|
PAP/CHAP Authentication for PPP mode |
|
| NAT for Firewall | |
|
SPI Firewall with DoS protection |
|
|
ALG for NAT/PAT support |
|
|
2 Level (User/Admin) Authentication to Router |
|
| IP Filtering and MAC Filtering | |
| VPN |
IPSec VPN IPSec/PPTP/L2TP VPN Pass through |
| QoS | Priority Queuing/Classification Rules/802.1p |
| Processor | VSPM310+MT7603+MT7612EN+LE9642 |
| Memory | F |
