A1004

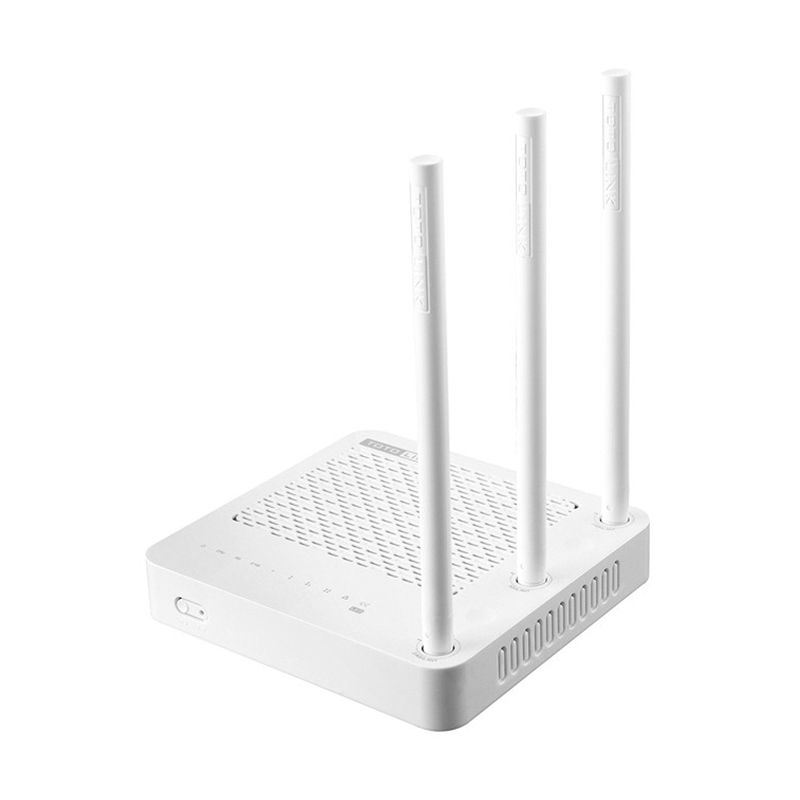

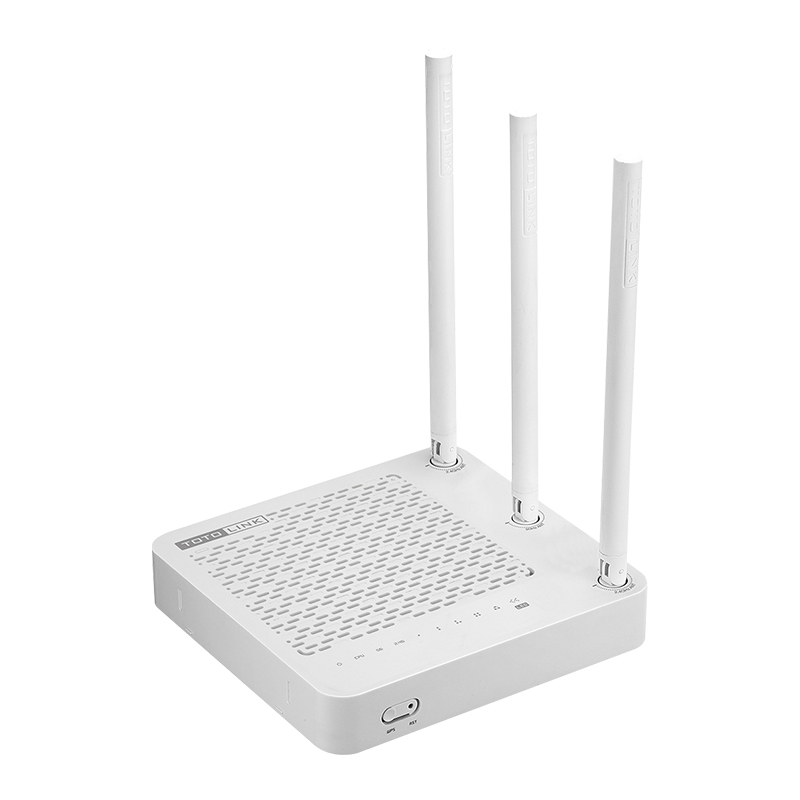

AC750 Wireless Dual Band Gigabit Router
- Complies with 802.11ac/a/b/g/n standards.
- 300Mbps on 2.4GHz and 433Mbps on 5GHz band simultaneously.
- Three fixed high gain antennas with advanced MIMO technology.
- Supports PPPoE, DHCP and Static IP broadband functions.
- Five Gigabit Ethernet Ports ensure ultrafast data transmission rate.
- Multi-SSID allows user to create multiple SSIDs according to their needs.
- Provides 64/128-bit WEP, WPA, WPA2 and WPA-Mixed security.
- Connects to secure network easily and fast using WPS.
- Supports IP, MAC, URL filtering and Port Forwarding.
- Universal repeater and WDS function for easy Wi-Fi extension.
- The VPN server can not only protect the privacy of your information, but also simplify network management.
Spec
| Brand | TOTOLINK |
| Model | A1004 |
| Standards | IEEE 802.11ac n/g/b/a |
| Frequency Range | 2.4GHz/5GHz (Dual-Band) |
| WiFi Speed | AC750 |
| Data Rate | - 2.4GHz: Up to 300Mbps - 5GHz: Up to 433Mbps |
| EIRP | - 2.4GHz < 20dBm - 5GHz < 23dBm |
| Reception Sensitivity | - 2.4GHz: 11b 11M: - 85 dBm 11g 54M: - 72 dBm 11n HT20 MCS7: - 69 dBm HT40 MCS7: - 66 dBm - 5GHz: 11a 54M: - 70 dBm 11ac HT80 MCS7: - 53 dBm 11n HT20 MCS7: - 67 dBm HT40 MCS7: - 64 dBm |
| Interface | - 4 *1000Mbps LAN Ports - 1 *1000Mbps WAN Port |
| Operation Mode | - Multiple BSS - Multibridge(Repeater): Wireless Bridge/Wireless WAN - MAC Authentication - WDS - WPS |
| Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES) |
| Wireless Mode | Multiple SSIDs, MAC Aurhentication, Universal Repeater,WDS,WPS, IPTV |
| Antennas | 2 *5dBi fixed antennas(2.4GHz ), 1 *5dBi fixed antennas(5GHz ) |
| Dimensions | 10.8 x 7.2 x 2.4 in. (273.5mm x 182mm x 60.5mm) |
| Power Supply | 9V DC/0.8A |
| Button | 1 *RST/WPS Button |
| LEDS | 1 *Power, 1 *CPU, 1 *2.4G Wireless, 1 *5G Wireless, 1 *WAN, 4 *LAN |
| Firewall | - Internet Access Control: IP/MAC Address filtering - Net Detector - Remote/Internal access list |
| Utilit | VPN Server, DDNS, WOL, Host Scan |
| Management | QoS, DDNS, remote management, and more. |
| Package Contents | - 1 *A1004 Wireless Router - 1 *Power Adapter - 1 *Ethernet Cable - 1 *Quick Installation Guide |
