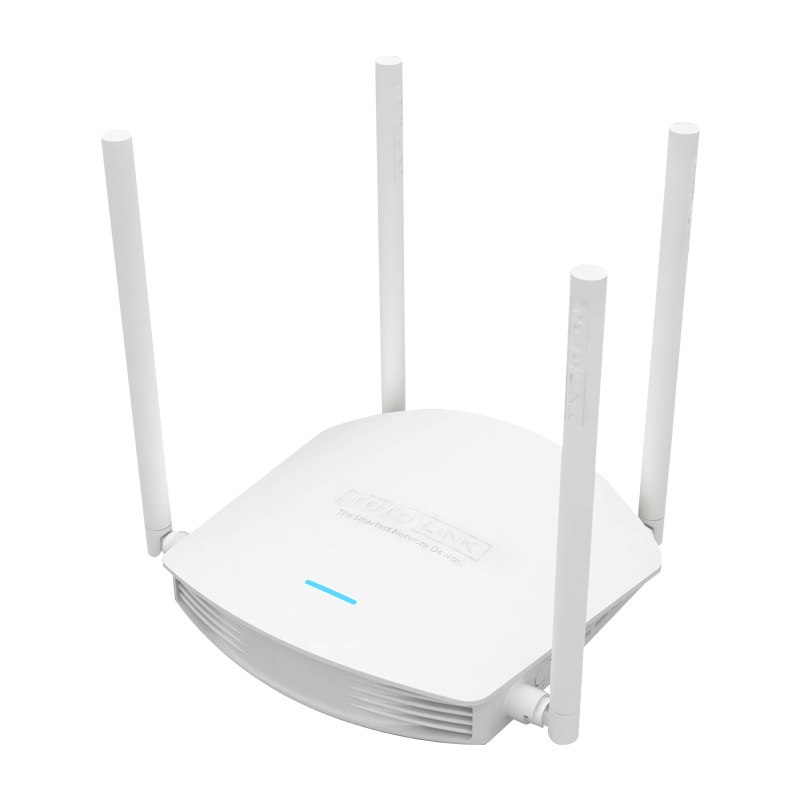

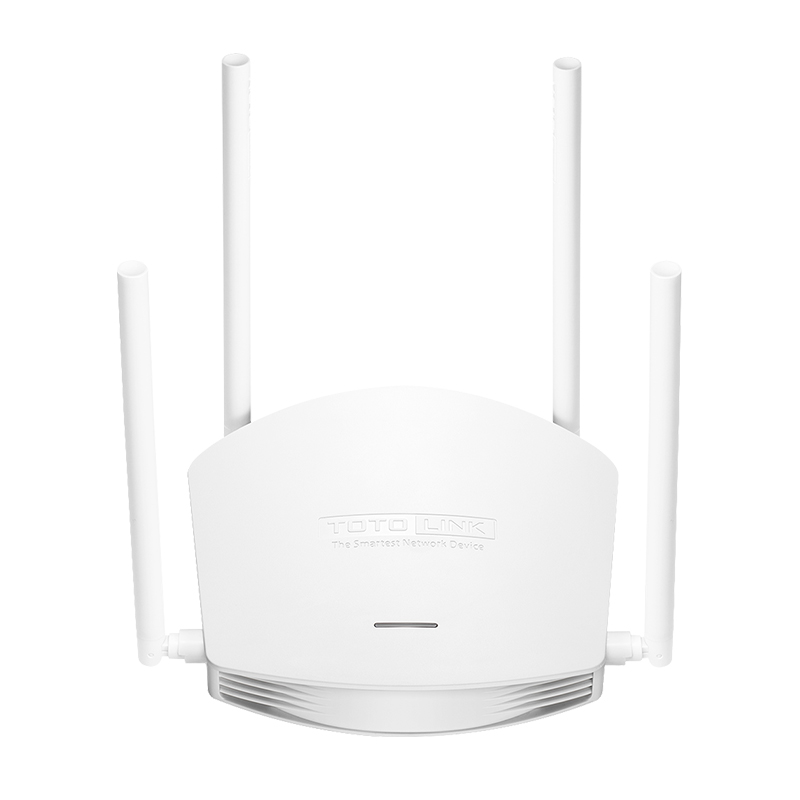

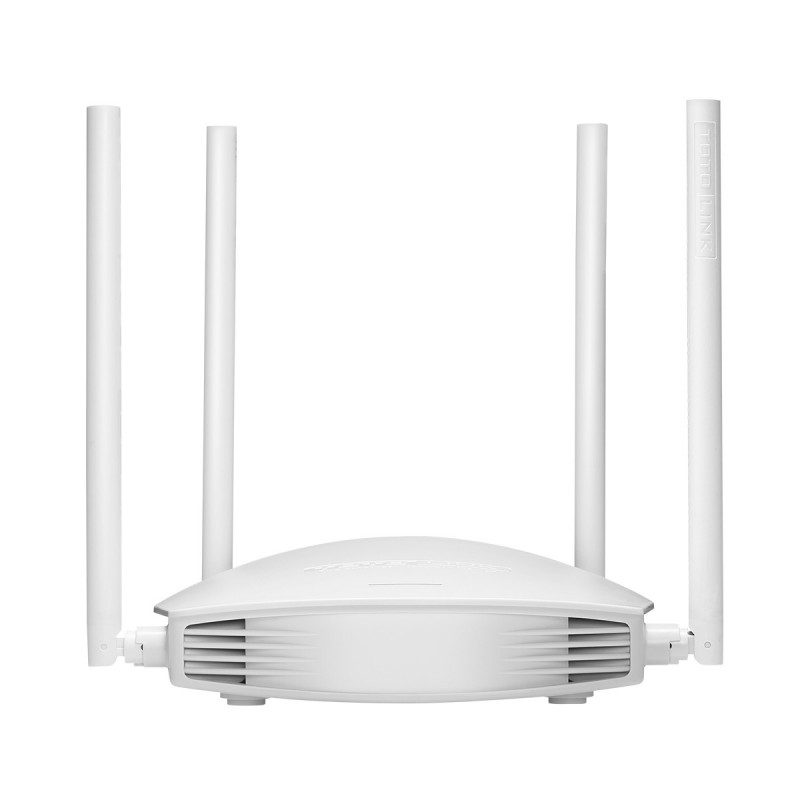

N600R

600Mbps Wireless Router

  • Complies with IEEE 802.11n/g/b standards for 2.4GHz Wireless LAN.
  • Up to 600Mbps data rate for Wi-Fi network.
  • Advanced MIMO technology enhances the throughput and wireless coverage.
  • One Turbo slide switch for easy and quick Wi-Fi coverage extension.
  • Supports  DHCP, Static IP, PPPoE, PPTP and L2TP broadband functions.
  • Provides 64/128-bit WEP, WPA, WPA2 and WPA-Mixed security.
  • Connects to secure network easily and fast using WPS.
  • Supports IP, Port, MAC, URL filtering and Port Forwarding.
  • QoS: bandwidth control based on IP.
  • Multi-SSID allows user to create multiple SSIDs according to their needs.
  • Universal repeater and WDS function for easy Wi-Fi extension.

Spec



Brand TOTOLINK
Model N600R
Standards IEEE 802.11 n/g/b
Frequency Range 2.4000~2.4835GHz
WiFi Speed 600Mbps
Data Rate - 802.11n: up to 600Mbps
- 802.11g: up to 54Mbps (dynamic)
- 802.11b: up to 11Mbps (dynamic)
EIRP  < 20dBm
Reception Sensitivity  - 11n  HT20 MCS7: -68 dBm@10% PER
          HT40 MCS7: -65 dBm@10% PER
- 11g  54M: -72 dBm@10% PER
- 11b 11M: -85 dBm@8% PER

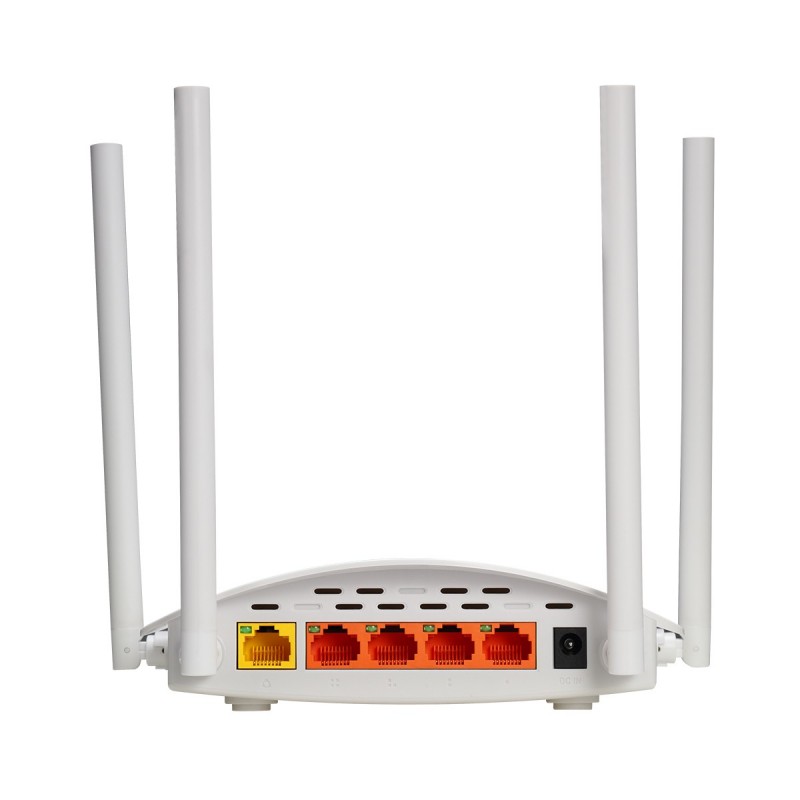

Interface - 4 *10/100Mbps LAN Ports
- 1 *10/100Mbps WAN Port
Operation Mode - Wireless ISP Client Router
- Repeater (Range Extender)
- Router
- Bridge with AP
Wireless Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
Wireless Mode Multiple APs, Repeater Setting, MAC Authentication, WDS, WPS,IPTV ,IPV6
QoS QoS Setup, Connect Limit Control
Antennas 4 *5dBi fixed antennas
Button 1 *RST/WPS Button, 1 *Turbo Slide Switch
Dimensions 6.7 x 5.4 x 1.6 in. (170.2 x 138.0 x 40.6 mm)
Power Supply 9V DC / 0.8A
LEDS 1 *Status, 4 *LAN, 1 *WAN
Firewall MAC Address Filtering, IP/Port Filtering, URL Filtering, Port Forwarding, VPN Passthrough, DMZ Setting
Management DDNS Setting, Time Setting, Remote Management, System Log, Upgrade Firmware, System Configuration.
Package Contents - 1 *N600R Wireless Router
- 1 *Power Adapter
- 1 *Ethernet Cable
- 1 *Quick Installation Guide
