BR-6208AC

AC750 Dual-Band Wi-Fi Router with VPN, Access Point, Range Extender, Wi-Fi Bridge & WISP

  • AC750 High-Speed: Max. speed up to 300Mbps (2.4GHz) and 433Mbps (5GHz) with 802.11ac Wi-Fi standard
  • 5 Modes in 1: Router, Access Point, Wi-Fi Range Extender, Wi-Fi Bridge and WISP
  • Backward Compatible: Compatible with 802.11a/b/g/n standards
  • Concurrent Dual-Band: Wireless connectivity for 2.4GHz and 5GHz
  • VPN (Virtual Private Network): Access secure, remote networks from anywhere and protect privacy on public Wi-Fi and bypass Internet censorship
  • Multiple SSIDs & VLAN: Supports up to 8 SSIDs (2.4GHz x 4 & 5GHz x 4) and provides security and protecting confidential or critical network resources (*Access point mode only)
  • Guest Network: Provides secure & private connectivity while isolating guests from your primary network (*Router mode only)
  • Smart iQ Setup: Smart, automatic and quick web-based installation with no CD required from any smartphone, iPad, tablet, or PC
  • iQoS Bandwidth Management: Efficient and effective internet bandwidth management

The extraordinary growth in the number of wireless devices found in modern homes has seen a huge increase in demand for wireless speed, range and bandwidth. This continuing trend away from wired connections to wireless communication and the ever-increasing throughput demands of new Wi-Fi devices and applications—including Internet TVs, computers, tablets and smartphones—drives the requirements in today’s homes for high-performance, reliable Wi-Fi to unprecedented levels. To meet the connectivity needs of homes and businesses alike, Edimax has launched the BR-6208AC V2 dual-band 802.11ac router with elegant and compact design: featuring the latest 11ac standard for extraordinary improvements in the speed, reliability and quality of wireless communications.




​Next-Generation Wireless Networking

The Edimax BR-6208AC V2 router supports the next generation IEEE 802.11ac wireless standard, meaning higher data rates in the 5GHz band. With 300Mbps speeds in the 2.4GHz band and 433Mbps speeds in 5GHz, the BR-6208AC V2 is ideal for HD video streaming and large file transfers. The router is also backward compatible with 802.11a/b/g/n to ensure compatibility with legacy Wi-Fi devices.
 Edimax BR-6208AC V2 AC750 Dual-Band Wi-Fi Router with VPN, Access Point, Range Extender, Wi-Fi Bridge & WISP










Concurrent Dual-Band Wi-Fi Connectivity

The Edimax BR-6208AC V2 router provides simultaneous 2.4GHz (802.11n) and 5GHz (802.11ac) wireless network connectivity for maximum flexibility of use.


Edimax BR-6208AC V2 AC750 Dual-Band Wi-Fi Router with VPN, Access Point, Range Extender, Wi-Fi Bridge & WISP










VPN Access for Privacy & Security

Built-in Virtual Private Network (VPN) support for easy VPN access on all your devices. VPNs enable you to access secure, remote networks from anywhere and can offer privacy and security online. Log in to your work/school network remotely or avoid geoblocking, protect privacy on public Wi-Fi and bypass Internet censorship.

Home Users: Avoid regional restrictions and access geoblocked content such as Netflix or iPlayer from anywhere. Ensure your privacy and anonymity online and defeat censorship and other location-based content restrictions. You can also remotely access your home network when you’re away, and use your encrypted VPN for security when out and about using potentially unsafe public Wi-Fi hotspots.

Small Office Users: Enable your employees to access company resources remotely such as email, documents saved on the company server and any programs/systems when they are outside the office.



Edimax BR-6208AC V2 AC750 Dual-Band Wi-Fi Router with VPN, Access Point, Range Extender, Wi-Fi Bridge & WISP, Home VPN







Edimax BR-6208AC V2 AC750 Dual-Band Wi-Fi Router with VPN, Access Point, Range Extender, Wi-Fi Bridge & WISP, SOHO Small Office VPN










5-in-1 Router, Access Point, Range Extender, Wireless Bridge and WISP

The BR-6208AC V2 can work as router, access point, range extender, wireless bridge or WISP. Just configure the mode you need for your network environment using the smart iQ Setup wizard.



Edimax BR-6208AC V2 AC750 Dual-Band Wi-Fi Router with VPN, Access Point, Range Extender, Wi-Fi Bridge & WISP, 5-in-1 mode

Switch mode using the smart iQ setup wizard
on any device with a web browser, no CD required.

*Mobile device setup requires iOS 4.0 or Android 4.0 and above.










Smart iQ Setup

Features iQ Setup for smart, automatic and quick installation with no CD required.



Edimax BR-6208AC V2 AC750 Dual-Band Wi-Fi Router with VPN, Access Point, Range Extender, Wi-Fi Bridge & WISP, smart iQ setup










Edimax’s Revolutionary iQoS

iQoS is Edimax’s solution for a quicker, easier, and more effective way to manage Internet bandwidth. While Quality of Service (QoS) functionality is a common feature in routers across the market, typically only advanced users have the knowledge required to set up the complex parameters. Edimax though has redesigned QoS with user-friendliness and accessibility in mind. A simple and intuitive user interface allows users to arrange bandwidth priority settings in just a few clicks. With iQoS, you can enjoy gaming, video streaming, VoIP applications and BT clients at the same time without the usual nightmare of lag and interruptions. An original, efficient and effective means of managing your Internet bandwidth.





Edimax BR-6208AC V2 AC750 Dual-Band Wi-Fi Router with VPN, Access Point, Range Extender, Wi-Fi Bridge & WISP, iQoS bandwidth management











High Gain Antennas For Better Wi-Fi Performance

Employing three external high-gain fixed antennas, the BR-6208AC V2 provides powerful 2.4GHz and 5GHz dual-band signal strength and enhances Wi-Fi range, providing signal penetration through walls and floors across your home or office.






Edimax BR-6208AC V2 AC750 Dual-Band Wi-Fi Router with VPN, Access Point, Range Extender, Wi-Fi Bridge & WISP, high gain antenna for better Wi-Fi performance








Multi-SSID & VLAN Support*

Multi-SSID enables users to configure up to eight separate SSIDs (2.4GHz x 4 and 5GHz x 4) in order to group and manage users according to your requirements. In addition, each SSID can be assigned a different VLAN ID, so users with multiple VLANs can manage the network access level of each SSID – ensuring security and protecting confidential or critical network resources.
*Access point mode only


Edimax BR-6208AC V2 AC750 Dual-Band Wi-Fi Router with VPN, Access Point, Range Extender, Wi-Fi Bridge & WISP, multiple SSID and VLAN









Guest Network*

Supports a guest network to provide connectivity while isolating guests from your primary network.
*Router mode only


Edimax BR-6208AC V2 AC750 Dual-Band Wi-Fi Router with VPN, Access Point, Range Extender, Wi-Fi Bridge & WISP, multiple SSID and VLAN

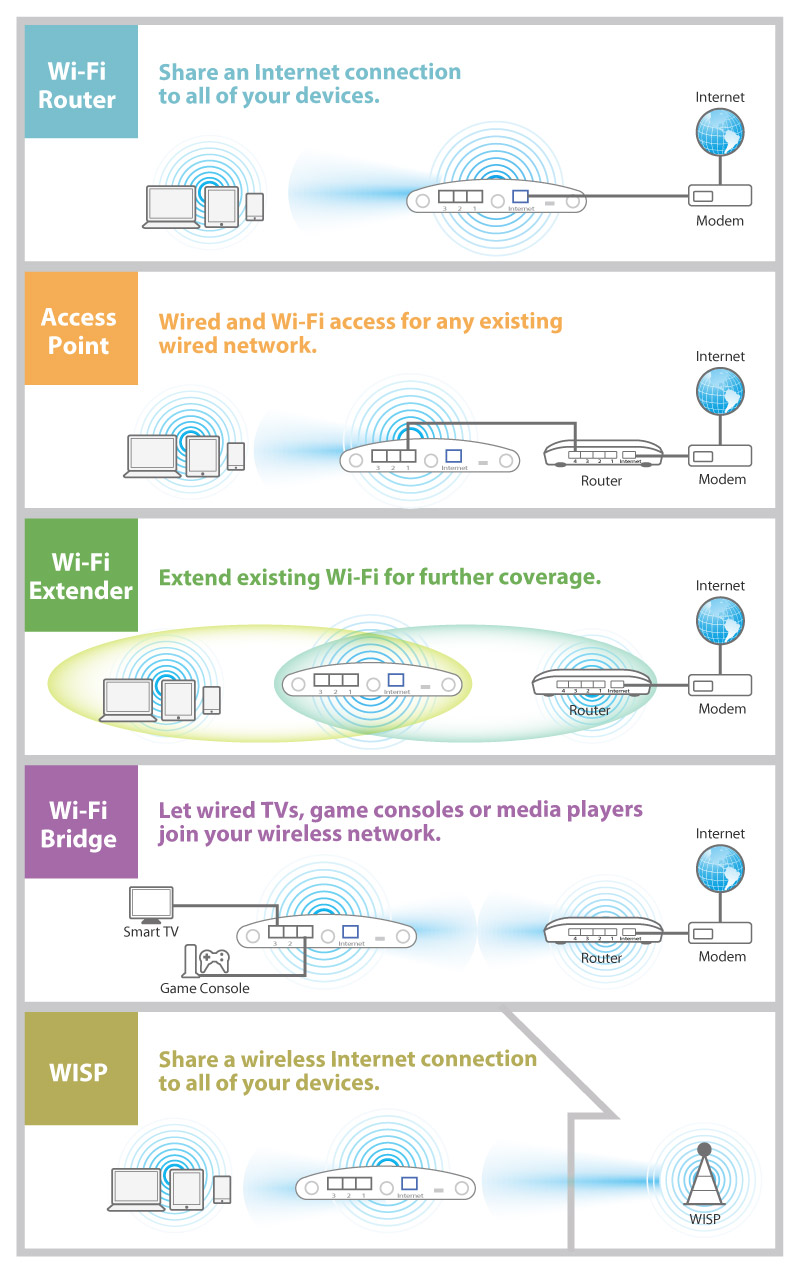

APPLICATION DIAGRAM



Edimax BR-6208AC V2 AC750 Dual-Band Wi-Fi Router with VPN, Access Point, Range Extender, Wi-Fi Bridge & WISP, 5-in-1 mode applications

*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.

Spec


SPECIFICATIONS


FUNCTIONS

HARDWARE INTERFACE

MANAGEMENT & INSTALLATION

•Supports router, access point, range extender, wireless bridge and WISP modes
•Guest network
•Up to 8 SSIDs (2.4GHz x 4 and 5GHz x 4) with VLAN support in AP mode
•IGMP proxy and IGMP snooping
•DDNS and DHCP
•Port triggering for special applications
•Virtual server and DMZ hosting
•MAC/IP filter and URL blocking
•Virtual server and DMZ hosting
•iQoS for smart bandwidth management
•Static routing
•UPnP architecture
•VPN pass-through (IPSec/PPTP)
•Wi-Fi schedule control
•Fault tolerance firmware upgrade

•1 x RJ-45 10/100M WAN port
•3 x RJ-45 10/100M LAN port
•LED indicators: power, Internet, 2.4GHz wireless, 5GHz wireless, new FW, VPN
•2 x 2.4GHz antennas and 1 x 5GHz antenna
•WPS/Reset button

•Multi-language user interface
•Supports remote management
•System status and security log
•Firmware upgradable
•Smart iQ Setup, no CD required
•Supports smartphone, tablet or laptop setup (iOS 4 or Android 4 and above are required for smartphone or tablet setup) with web browser (Internet explorer, Google C
